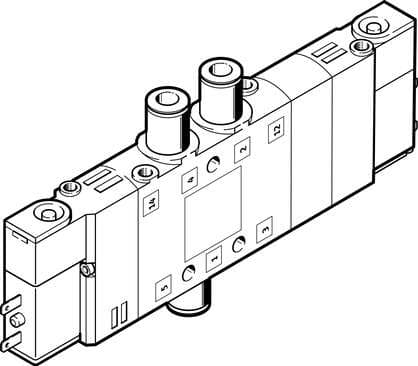

533155 Festo Directional Control Valves

Product Details

• Valve function
  5/3, exhausted
• Maritime classification
  See certificate
• Standard nominal flow rate
  250 l/min
• Degree of protection
  IP65 as per IEC 60529
• Lap
  Overlap
• Operating pressure
  3 bar ... 8 bar
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• On switching time
  16 ms
• Coil characteristics
  24 V DC: 1.28 W
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Electrical connection
  2-pin
• Pneumatic connection 1
  QS-6
• Pneumatic connection 5
  M7
• Switching time off
  20 ms
• Max. negative test pulse on 1 signal
  900 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Temperature of medium
  -5 °C ... 50 °C
Type of mounting
With through-hole
Pneumatic connection 4
QS-6
Seals material
NBR
Width
10 mm
Pneumatic working port
QS-6
Design
Piston gate valve
Exhaust air function
With flow control option
Type of control
Pilot-controlled
Symbol
00991036
Duty cycle
100% in combination with holding current reduction
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot exhaust air port 84
M3
Pneumatic connection 2
QS-6
Note on materials
RoHS-compliant
Actuation type
Electrical
Operating voltage
24V DC
Reset method
Mechanical spring
Mounting position
Any
Pilot air supply port
Internal
Valve position ID
Label holder
Max. positive test pulse with 0 signal
1200 µs
Ambient temperature
-5 °C ... 50 °C
Pilot air port 12
M3
Pilot air port 14
M3
Nominal width
4 mm
Type code
CPE10
Manual override
Detenting via accessory Non-detenting
Permissible voltage fluctuations
-15 % / +10 %
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot exhaust air port 82
M3
Pneumatic connection 3
M7
Housing material
Die-cast aluminum
