533119 Festo Pneumatic Components

533119 on Powermatic Associates
Festo

Part#:533119

Alt. Part#:NTSD-WD-11

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

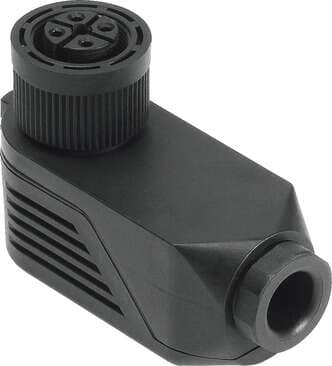

power supply socket NTSD-WD-11 For valve terminals. Mounting type: With sleeve nut, Assembly position: Any, Product weight: 34 g, Electrical connection: (* 4-pin, * Plug socket angled, * Screwed terminal), Operating voltage range AC: <: 250 V

Product Details

  • Type code
    NTSD
  • Electrical connection
    4-pin Screw terminal
  • Approved cable diameter
    5 mm ... 11 mm
  • Storage temperature
    -20 °C ... 70 °C
  • Material of pin contacts
    Copper alloy Brass
  • Type of mounting
    With union nut
  • Current rating
    16 A
  • Operating voltage range AC
    ≤ 250 V
  • Ambient temperature
    -5 °C ... 50 °C
  • Housing material
    PBT
  • Cable fitting
    Pg11
  • Product weight
    34 g
  • Connection cross section
    2.5 mm²
  • Degree of protection
    IP67
  • Mounting position
    Any

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
