533192 Festo Pneumatic Components

533192 on Powermatic Associates
Festo

Part#:533192

Alt. Part#:VMPA-KMS1-24-2,5

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

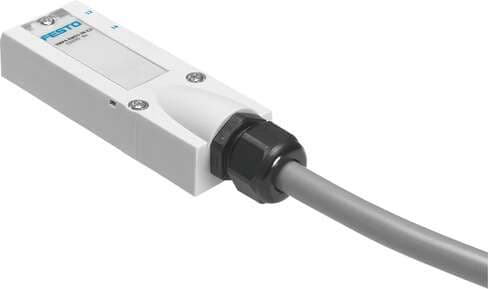

connecting cable VMPA-KMS1-24-2,5 For multi-pin plug connection to valve terminal MPA-S. Product weight: 563 g, Electrical connection: Cable with plug, Cable length: 2,5 m, Min. cable bending radius: 171 mm, Cable diameter: 11,4 mm

Product Details

  • Cable diameter
    11.4 mm
  • Ambient temperature with flexible cable installation
    0 °C ... 70 °C
  • Product weight
    563 g
  • Min. cable bending radius
    171 mm
  • Degree of protection
    IP65 as per IEC 60529
  • Type code
    VMPA
  • Electrical connection
    Cable with plug
  • Cable length
    2.5 m
  • Cable design
    25 x 0.34 mm²
  • Material of cable sheath
    PVC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

533192 Related Documents

533192 DataSheet.pdf
