526905 Festo Pneumatic Actuators
Part#:526905
Alt. Part#:ADVC-10-5-P-A
Manufacturer:Festo
Category:Pneumatic Actuators
Product Lifecycle:Active
Product description

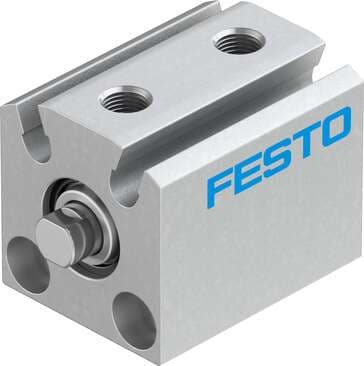

short-stroke cylinder ADVC-10-5-P-A Without thread on piston rod Stroke: 5 mm, Piston diameter: 10 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting
Product Details
- Cushioning Elastic cushioning rings/pads at both ends
- Position sensing For proximity sensor
- Symbol 00991217
- Product weight 29 g
- Seals material NBR TPE-U(PU)
- Stroke 5 mm
- Mounting position Any
- Operating pressure 1 bar ... 8 bar
- Ambient temperature -20 °C ... 80 °C
- Type of mounting Optionally: With accessories
- Piston rod material High-alloy steel
- Piston diameter 10 mm
- Mode of operation Double-acting
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Theoretical force at 6 bar, advancing 47 N
- Cover material Wrought aluminum alloy Anodized
- Type code ADVC
- Design Piston Piston rod
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Moving mass 3.2 g
- Note on materials Free of copper and PTFE
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Theoretical force at 6 bar, retracting 40 N
- Pneumatic connection M5
- Housing material Wrought aluminum alloy Anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
