526984 Festo Mechanical & Manual Valves
Part#:526984
Alt. Part#:FPB-3-1/4
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

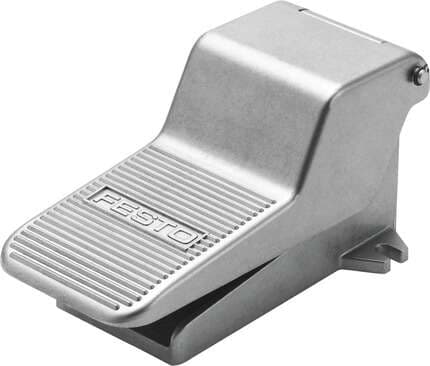

foot valve with detent FPB-3-1/4 detenting Valve function: 3/2 bistable, Type of actuation: manual, Standard nominal flow rate: 550 l/min, Operating pressure: -0,95 - 10 bar, Design structure: Poppet seat
Product Details
- Nominal width 7 mm
- Product weight 610 g
- Actuation type Manual
- Reset method Mechanical spring
- Operating pressure -0.95 bar ... 10 bar
- Type of control Direct
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pneumatic connection 1 G1/4
- Seals material NBR
- Standard nominal flow rate 550 l/min
- Design Plate seat
- Type code FPB
- Actuating force 31.5 N
- Pneumatic connection 3 G1/4
- Valve function 3/2, bistable
- Pneumatic working port G1/4
- Mounting position Any
- Symbol 00991275
- Type of mounting With through-hole
- Housing material Die-cast aluminum
- Flow direction Non-reversible
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 2 G¼
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
526984 Related Documents
Similar products from: Festo Mechanical & Manual Valves
Manufacturer warranty
526984 Festo
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 526984 with other Mechanical & Manual Valves products
Nominal width
Product weight
Actuation type
Reset method
Operating pressure
Type of control
Operating medium
Pneumatic connection 1
Seals material
Standard nominal flow rat...
Selected product
526984
Festo
foot valve with detent FPB-3-1/4 detenting Valve function: 3/2 bistable, Type of actuation: manual, ...
Nominal width7 mm
Product weight610 g
Actuation typeManual
Reset methodMechanical spring
Operating pressure-0.95 bar ... 10 bar
Type of controlDirect
Operating mediumCompressed air as per ISO 85...
Pneumatic connection 1G1/4
Seals materialNBR
Standard nominal flow rate550 l/min
3488205
Festo
hand lever valve VHER-H-B43C-B-G18 Valve function: 4/3 closed, Type of actuation: manual, Width: 42 ...
Nominal width6 mm
Product weight-
Actuation typeManual
Reset method-
Operating pressure0 bar ... 10 bar
Type of controlDirect
Operating medium-
Pneumatic connection 1-
Seals material-
Standard nominal flow rate800 l/min
About the manufacturer
Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...
About the Product Category
Mechanical valves are tools that manage the movement and pressure of fluid within a system or process. They have the ability to initiate or halt flow, adjust flow and pressure, dictate the flow direction, modulate flow rates, and enhance safety by alleviating pressure or vacuum.
