5269269 Festo Pneumatic Actuators

5269269 on Powermatic Associates
Festo

Part#:5269269

Alt. Part#:AEN-S-10-10-I-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

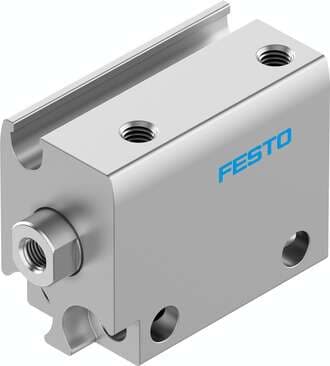

compact cylinder AEN-S-10-10-I-A Stroke: 10 mm, Piston diameter: 10 mm, Cushioning: No cushioning, Assembly position: Any, Mode of operation: pushing action

Product Details

  • Variants
    Piston rod at one end
  • Theoretical force at 6 bar, advancing
    41.7 N
  • Material of dynamic seals
    NBR TPE-U(PU)
  • Type code
    AEN-S
  • Cushioning
    No cushioning
  • Symbol
    00991201
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Product weight
    19 g
  • Note on materials
    RoHS-compliant
  • Piston diameter
    10 mm
  • Mounting position
    Any
  • Design
    Piston Piston rod
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, retracting
    5.3 N
  • Type of mounting
    With through-hole
  • Cover material
    Wrought aluminum alloy
  • Housing material
    Wrought aluminum alloy Anodized
  • Operating pressure
    1.5 bar ... 8 bar
  • Mode of operation
    Pushing
  • Piston rod end
    Internal thread
  • Ambient temperature
    -10 °C ... 60 °C
  • Impact energy in the end positions
    0.012 J
  • Pneumatic connection
    M3
  • Stroke
    10 mm
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Moving mass
    5.7 g
  • Piston rod material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
