526901 Festo Pneumatic Actuators

526901 on Powermatic Associates
Festo

Part#:526901

Alt. Part#:ADVC-6-5-P-A

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

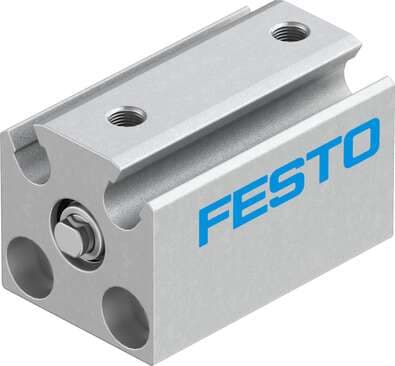

short-stroke cylinder ADVC-6-5-P-A Without thread on piston rod Stroke: 5 mm, Piston diameter: 6 mm, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any, Mode of operation: double-acting

Product Details

  • Stroke
    5 mm
  • Symbol
    00991217
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Moving mass
    1.7 g
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Operating pressure
    1.5 bar ... 8 bar
  • Ambient temperature
    -20 °C ... 80 °C
  • Type of mounting
    Optionally: With accessories
  • Pneumatic connection
    M3
  • Piston diameter
    6 mm
  • Mounting position
    Any
  • Position sensing
    For proximity sensor
  • Theoretical force at 6 bar, retracting
    13 N
  • Note on materials
    Free of copper and PTFE
  • Housing material
    Wrought aluminum alloy Anodized
  • Mode of operation
    Double-acting
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    14 g
  • Seals material
    NBR TPE-U(PU)
  • Type code
    ADVC
  • Design
    Piston Piston rod
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, advancing
    17 N
  • Cover material
    Wrought aluminum alloy Anodized
  • Piston rod material
    High-alloy steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
