36198 Festo Proximity Sensors

36198 on Powermatic Associates
Festo

Part#:36198

Alt. Part#:SMEO-4U-K-LED-24

Manufacturer:Festo

Category:Proximity Sensors

Product Lifecycle:Active

Product description

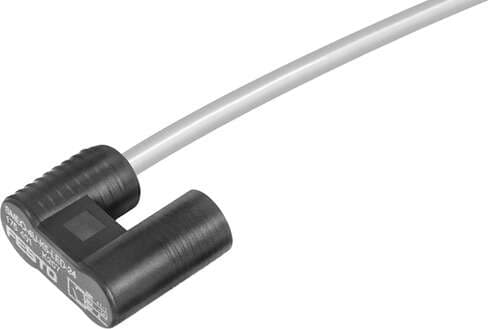

proximity sensor SMEO-4U-K-LED-24 With reed contact and light-emitting diode, without mounting kit. Design: Round, Authorisation: RCM Mark, CE mark (see declaration of conformity): to EU directive for EMC, Materials note: Free of copper and PTFE, Measurin

Product Details

  • Switching output
    Contact-based, bipolar
  • Switch-off time
    0.03 ms
  • Cable length
    2.5 m
  • Switching status indication
    LED yellow
  • Certification
    RCM compliance mark
  • On time
    ≤ 0.5 ms
  • Max. output current
    500 mA
  • Product weight
    70 g
  • Type code
    SMEO
  • Note on materials
    Free of copper and PTFE
  • Ambient temperature
    -20 °C ... 60 °C
  • Max. switching capacity DC
    10 W
  • DC operating voltage range
    12 V ... 27 V
  • Material of cable sheath
    TPE-U(PUR)
  • Ambient temperature with flexible cable installation
    -5 °C ... 60 °C
  • Design
    Round
  • Measuring principle
    Magnetic reed
  • Reproducibility of switching value
    +/- 0.1 mm
  • Short-circuit protection
    no
  • Reverse polarity protection
    no
  • Type of mounting
    With accessories
  • Degree of protection
    IP67
  • Symbol
    00991145
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Switching element function
    N/O contact
  • Electrical connection
    3-wire Cable
  • Housing material
    PET

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
