196926 Festo Directional Control Valves

196926 on Powermatic Associates
Festo

Part#:196926

Alt. Part#:CPE10-M1BH-5JS-M7

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

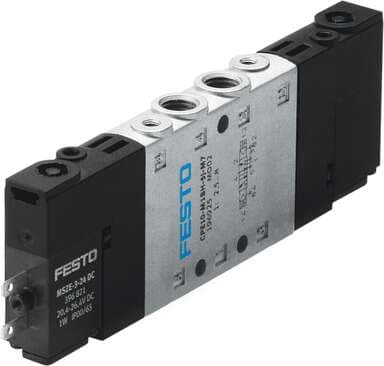

solenoid valve CPE10-M1BH-5JS-M7 High component density Valve function: 5/2 bistable, Type of actuation: electrical, Width: 10 mm, Standard nominal flow rate: 350 l/min, Operating pressure: -0,9 - 10 bar

Product Details

  • Actuation type
    Electrical
  • Certification
    c UL us - Recognized (OL)
  • Manual override
    Detenting via accessory Non-detenting
  • Changeover time
    8 ms
  • Coil characteristics
    24 V DC: 1.28 W
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    68 g
  • Type of mounting
    With through-hole
  • Pilot air port 12
    M3
  • Pneumatic connection 5
    M7
  • Width
    10 mm
  • Operating pressure
    -0.9 bar ... 10 bar
  • Nominal width
    4 mm
  • Mounting position
    Any
  • Symbol
    00991016
  • Pilot pressure
    2.5 bar ... 8 bar
  • Max. positive test pulse with 0 signal
    1200 µs
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Temperature of medium
    -5 °C ... 50 °C
  • Electrical connection
    2-pin
  • Pneumatic connection 2
    M7
  • Seals material
    NBR
  • Lap
    Overlap
  • Operating voltage
    24V DC
  • Sealing principle
    Soft
  • Flow direction
    Reversible
  • Duty cycle
    100% in combination with holding current reduction
  • Permissible voltage fluctuations
    -15 % / +10 %
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pilot exhaust air port 82
    M3
  • Pilot air port 14
    M3
  • Pneumatic connection 3
    M7
  • Note on materials
    RoHS-compliant
  • Maritime classification
    See certificate
  • Pneumatic working port
    M7
  • Degree of protection
    IP65 as per IEC 60529
  • Exhaust air function
    With flow control option
  • Pilot air supply port
    External
  • Valve position ID
    Label holder
  • Max. negative test pulse on 1 signal
    900 µs
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Ambient temperature
    -5 °C ... 50 °C
  • Pilot exhaust air port 84
    M3
  • Pneumatic connection 1
    M7
  • Pneumatic connection 4
    M7
  • Housing material
    Die-cast aluminum
  • Valve function
    5/2, bistable
  • Standard nominal flow rate
    350 l/min
  • Design
    Piston gate valve
  • Type code
    CPE10
  • Type of control
    Pilot-controlled
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
