196956 Festo Pneumatic Components

196956 on Powermatic Associates
Festo

Part#:196956

Alt. Part#:VN-T6-BP-NRH

Manufacturer:Festo

Category:Pneumatic Components

Product Lifecycle:Active

Product description

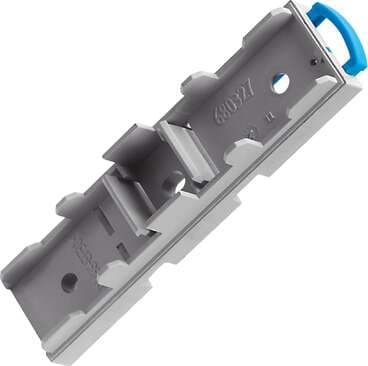

mounting plate VN-T6-BP-NRH For VN-... vacuum generator with width 24 mm. Hat-rail mounting. Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Ambient temperature: 0 - 60 °C, Max. tightening torque: 0,8 Nm, Product weight: 12,4 g, Mo

Product Details

  • Type code
    VN
  • Type of mounting
    With through-hole With H-rail
  • Product weight
    12.4 g
  • Plate material
    PA-reinforced
  • Gate valve material
    POM
  • Ambient temperature
    0 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Max. tightening torque
    0.8 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

196956 Related Documents

196956 DataSheet.pdf
