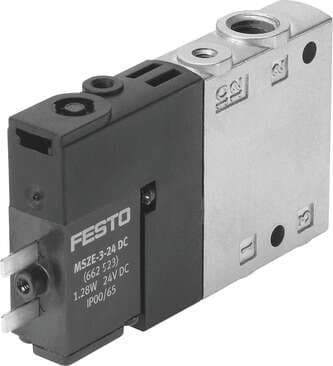

196916 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Operating pressure
  -0.9 bar ... 10 bar
• Certification
  c UL us - Recognized (OL)
• Valve position ID
  Label holder
• Switching time off
  14 ms
• Lap
  Overlap
• Pneumatic working port
  M7
• Design
  Piston gate valve
• Sealing principle
  Soft
• Flow direction
  Non-reversible
• On switching time
  14 ms
• Permissible voltage fluctuations
  -15 % / +10 %
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pilot exhaust air port 82
  M3
• Valve function
  3/2, closed, monostable
• Width
  10 mm
• Operating voltage
  24V DC
• Type code
  CPE10
• Mounting position
  Any
Type of control
Pilot-controlled
Duty cycle
100% in combination with holding current reduction
Max. negative test pulse on 1 signal
900 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Product weight
40 g
Pneumatic connection 2
M7
Pneumatic connection 3
M7
Maritime classification
See certificate
Standard nominal flow rate
400 l/min
Reset method
Pneumatic spring
Nominal width
4 mm
Pilot air supply port
External
Symbol
00991405
Coil characteristics
24 V DC: 1.28 W
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pilot air port 12
M3
Note on materials
RoHS-compliant
Degree of protection
IP65 as per IEC 60529
Manual override
Detenting via accessory Non-detenting
Pilot pressure
2.5 bar ... 8 bar
Max. positive test pulse with 0 signal
1200 µs
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
2-pin
Housing material
Die-cast aluminum
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Temperature of medium
-5 °C ... 50 °C
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
M7
Seals material
NBR
