Part#:196157

Alt. Part#:MHE2-MS1H-3/2O-QS-4-K

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

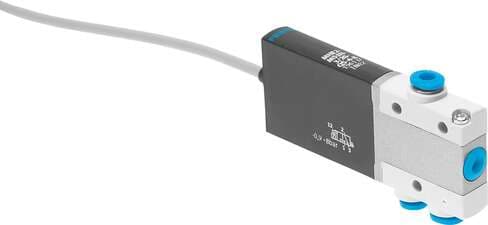

Product description

solenoid valve MHE2-MS1H-3/2O-QS-4-K individual valve, fast switching, with cable. Valve function: 3/2 open, monostable, Type of actuation: electrical, Width: 10 mm, Standard nominal flow rate: 100 l/min, Operating pressure: -0,9 - 8 bar

Product Details

  • Valve function
    3/2, open, monostable
  • Width
    10 mm
  • Operating voltage
    24V DC
  • Degree of protection
    IP65
  • Type code
    MH2
  • Type of control
    Direct
  • Operating pressure, reversible
    -0.9 bar ... 1 bar
  • Tolerance for ON switching time
    +10%/-30%
  • Coil characteristics
    24 V DC: low-current phase 1.25 W, high-current phase 5.0 W
  • Restricted ambient and media temperature
    Depending on the switching frequency (see diagram)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • KC characters
    KC EMC
  • Design
    Pressure-relieved poppet valve
  • Certification
    RCM compliance mark c UL us - Recognized (OL)
  • Exhaust air function
    With flow control option
  • Flow direction
    Reversible with restrictions
  • Switching time off
    2 ms
  • Permissible voltage fluctuations
    +/- 10 %
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Cable length
    2.5 m
  • Electrical connection
    Cable
  • Material of screws
    Steel Galvanized
  • Actuation type
    Electrical
  • Pneumatic working port
    QS-4
  • Manual override
    Non-detenting
  • Max. switching frequency
    330 Hz
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 60 °C
  • Pneumatic connection 11
    QS-4
  • Housing material
    Die-cast zinc Coated
  • Lap
    Underlap
  • Standard nominal flow rate
    100 l/min
  • Operating pressure
    -0.9 bar ... 8 bar
  • Width dimension
    14 mm
  • Sealing principle
    Soft
  • Symbol
    00991322
  • Additional functions
    Spark suppression Protective circuit
  • Tolerance for switching time off
    +10 %/-30 %
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • CE marking (see declaration of conformity)
    As per EU EMC directive
  • Ambient temperature
    -5 °C ... 60 °C
  • Type of mounting
    With through-hole
  • Pneumatic connection 2
    QS-4
  • Seals material
    HNBR NBR
  • Reset method
    Mechanical spring
  • Nominal width
    2 mm
  • Mounting position
    Any
  • Reverse polarity protection
    Bipolar
  • On switching time
    1.7 ms
  • Switching time variation at 1 Hz and above
    0.2 ms
  • Duty cycle
    100%
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Product weight
    60 g
  • Pneumatic connection 33
    QS-4
  • Material of cable sheath
    PUR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
