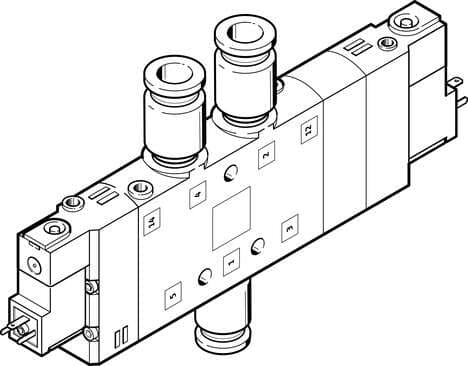

170277 Festo Directional Control Valves

Product Details

• Operating voltage
  24V DC
• Nominal width
  11 mm
• Manual override
  Detenting via accessory Non-detenting
• Duty cycle
  100%
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Temperature of medium
  -5 °C ... 50 °C
• Pilot exhaust air port 84
  M5
• Pneumatic connection 2
  QS-12
• Note on materials
  RoHS-compliant
• Valve function
  5/3, closed
• Width
  24 mm
• Design
  Piston gate valve
• Exhaust air function
  With flow control option
• Type of control
  Pilot-controlled
• Valve position ID
  Label holder
• Max. negative test pulse on 1 signal
  3100 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -5 °C ... 50 °C
• Pilot air port 12
  M5
• Pneumatic connection 5
  G3/8
Actuation type
Electrical
Operating pressure
2.5 bar ... 10 bar
Type code
CPE24
Mounting position
Any
Symbol
00991033
Max. positive test pulse with 0 signal
3300 µs
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot exhaust air port 82
M5
Pneumatic connection 3
G3/8
Housing material
Die-cast aluminum
Maritime classification
See certificate
Standard nominal flow rate
1650 l/min
Reset method
Mechanical spring
Sealing principle
Soft
Pilot air supply port
Internal
Switching time off
55 ms
Coil characteristics
24 V DC: 1.5 W
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Electrical connection
Form C
Pilot air port 14
M5
Pneumatic connection 4
QS-12
Lap
Overlap
Pneumatic working port
QS-12
Degree of protection
IP65 as per IEC 60529
Certification
c UL us - Recognized (OL)
Flow direction
Non-reversible
On switching time
25 ms
Permissible voltage fluctuations
-15 % / +10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Type of mounting
With through-hole
Pneumatic connection 1
QS-12
Seals material
NBR
