170280 Festo Directional Control Valves
Part#:170280
Alt. Part#:CPE24-M1H-5/3ES-QS-12
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

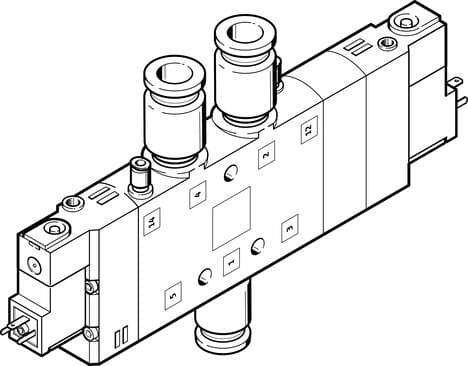

solenoid valve CPE24-M1H-5/3ES-QS-12 High component density Valve function: 5/3 exhausted, Type of actuation: electrical, Width: 24 mm, Standard nominal flow rate: 1600 l/min, Operating pressure: -0,9 - 10 bar
Product Details
- Nominal width 11 mm
- Pneumatic connection 4 QS-12
- Valve function 5/3, exhausted
- Width 24 mm
- Design Piston gate valve
- Sealing principle Soft
- Type of control Pilot-controlled
- Valve position ID Label holder
- Duty cycle 100%
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot exhaust air port 82 M5
- Pilot exhaust air port 84 M5
- Pneumatic connection 5 G3/8
- Maritime classification See certificate
- Operating voltage 24V DC
- Certification c UL us - Recognized (OL)
- Pilot air supply port External
- Switching time off 55 ms
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Electrical connection Form C
- Pilot air port 14 M5
- Seals material NBR
- Lap Overlap
- Operating pressure -0.9 bar ... 10 bar
- Reset method Mechanical spring
- Pilot pressure 2.5 bar ... 10 bar
- Max. negative test pulse on 1 signal 3100 µs
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Pilot air port 12 M5
- Pneumatic connection 2 QS-12
- Housing material Die-cast aluminum
- Actuation type Electrical
- Pneumatic working port QS-12
- Standard nominal flow rate 1600 l/min
- Type code CPE24
- Manual override Detenting via accessory Non-detenting
- Flow direction Reversible
- Max. positive test pulse with 0 signal 3300 µs
- Coil characteristics 24 V DC: 1.5 W
- Permissible voltage fluctuations -15 % / +10 %
- Temperature of medium -5 °C ... 50 °C
- Type of mounting With through-hole
- Pneumatic connection 3 G3/8
- Degree of protection IP65 as per IEC 60529
- Exhaust air function With flow control option
- Mounting position Any
- Symbol 00991032
- On switching time 25 ms
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature -5 °C ... 50 °C
- Pneumatic connection 1 QS-12
- Note on materials RoHS-compliant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
