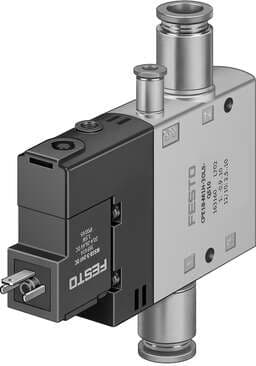

163804 Festo Directional Control Valves

Product Details

• Duty cycle
  100%
• Valve function
  3/2, open, monostable
• Pneumatic working port
  QS-10
• Type code
  CPE18
• Valve position ID
  Label holder
• Flow direction
  Non-reversible
• Maritime classification
  See certificate
• Standard nominal flow rate
  1000 l/min
• Degree of protection
  IP65 as per IEC 60529
• Certification
  c UL us - Recognized (OL)
• Symbol
  00991402
• Max. positive test pulse with 0 signal
  3300 µs
• Permissible voltage fluctuations
  -15 % / +10 %
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 2
  QS-10
• Seals material
  NBR
• Reset method
  Pneumatic spring
• Sealing principle
  Soft
• Type of control
  Pilot-controlled
• On switching time
  28 ms
Max. negative test pulse on 1 signal
3100 µs
Ambient temperature
-5 °C ... 50 °C
Pneumatic connection 1
QS-10
Housing material
Die-cast aluminum
Actuation type
Electrical
Operating pressure
-0.9 bar ... 10 bar
Nominal width
8 mm
Manual override
Detenting via accessory Non-detenting
Pilot air supply port
External
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Electrical connection
Form C
Pilot air port 12
M5
Lap
Overlap
Width
18 mm
Design
Piston gate valve
Operating voltage
230V AC
Mounting position
Any
Pilot pressure
2.5 bar ... 10 bar
Switching time off
18 ms
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
With through-hole
Pneumatic connection 3
G1/4
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Note on materials
RoHS-compliant
