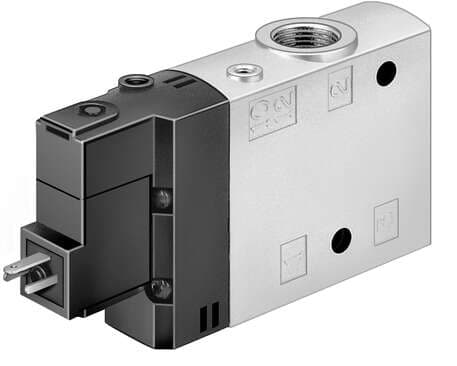

163832 Festo Directional Control Valves

Product Details

• Pilot air port 12
  M5
• Pneumatic connection 2
  G3/8
• Maritime classification
  See certificate
• Width
  24 mm
• Design
  Piston gate valve
• Certification
  c UL us - Recognized (OL)
• Sealing principle
  Soft
• On switching time
  50 ms
• Duty cycle
  100%
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Actuation type
  Electrical
• Pneumatic working port
  G3/8
• Operating pressure
  2.5 bar ... 10 bar
• Mounting position
  Any
• Symbol
  00991656
• Max. positive test pulse with 0 signal
  3300 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Ambient temperature
  -5 °C ... 50 °C
• Pneumatic connection 3
  G3/8
Lap
Overlap
Operating voltage
230V AC
Degree of protection
IP65 as per IEC 60529
Type code
CPE24
Type of control
Pilot-controlled
Pilot air supply port
Internal
Max. negative test pulse on 1 signal
3100 µs
Product weight
220 g
Electrical connection
Form C
Housing material
Die-cast aluminum
Manual override
Detenting via accessory Non-detenting
Switching time off
33 ms
Permissible voltage fluctuations
-15 % / +10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 50 °C
Pilot exhaust air port 82
M5
Seals material
NBR
Valve function
3/2, open, monostable
Standard nominal flow rate
3000 l/min
Reset method
Pneumatic spring
Nominal width
11 mm
Flow direction
Non-reversible
Valve position ID
Label holder
Coil characteristics
230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
With through-hole
Pneumatic connection 1
G3/8
Note on materials
RoHS-compliant
