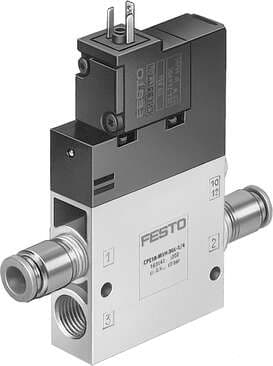

163816 Festo Directional Control Valves

Product Details

• Maritime classification
  See certificate
• Operating voltage
  110V AC
• Certification
  c UL us - Recognized (OL)
• Flow direction
  Non-reversible
• Duty cycle
  100%
• Width
  24 mm
• Nominal width
  11 mm
• Pilot air supply port
  Internal
• On switching time
  50 ms
• Coil characteristics
  110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA
• Vibration resistance
  Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
• Temperature of medium
  -5 °C ... 50 °C
• Type of mounting
  With through-hole
• Pneumatic connection 3
  G3/8
• Lap
  Overlap
• Standard nominal flow rate
  1250 l/min
• Design
  Piston gate valve
• Type code
  CPE24
• Manual override
  Detenting via accessory Non-detenting
• Max. positive test pulse with 0 signal
  3300 µs
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-5 °C ... 50 °C
Seals material
NBR
Pneumatic working port
QS-10
Reset method
Pneumatic spring
Sealing principle
Soft
Type of control
Pilot-controlled
Switching time off
33 ms
Max. negative test pulse on 1 signal
3100 µs
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Electrical connection
Form C
Pneumatic connection 2
QS-10
Note on materials
RoHS-compliant
Valve function
3/2, open, monostable
Actuation type
Electrical
Operating pressure
2.5 bar ... 10 bar
Degree of protection
IP65 as per IEC 60529
Mounting position
Any
Valve position ID
Label holder
Symbol
00991656
Pilot exhaust air port 82
M5
Pneumatic connection 1
QS-10
Housing material
Die-cast aluminum
Permissible voltage fluctuations
-15 % / +10 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pilot air port 12
M5
