1320822 Festo Grippers

1320822 on Powermatic Associates
Festo

Part#:1320822

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-12-E-U-S-P

Product Lifecycle:Active

Get a quick Quote!

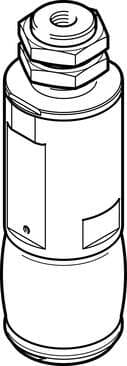

bellows gripper DHEB-12-E-U-S-P Size: 12, Stroke of the bellows: 5,5 mm, Min. diameter to be gripped: 13 mm, Max. diameter to be gripped: 17 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320822 Festo price in the box on the right side or send a quick quote.

Product Details

  • Max. diameter to be gripped
    17 mm
  • Mode of operation
    Single-acting Closed
  • Position sensing
    None
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Min. closing time at 6 bar
    40 ms
  • For use in the food industry
    See supplementary material information
  • Type of mounting
    Optionally: With lock nut
  • Housing material
    Aluminum Anodized
  • Stroke of bellows
    5.5 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Min. opening time at 6 bar
    20 ms
  • Average replacement interval for the bellows
    1 MioCyc
  • Bellows material
    VMQ (silicone)
  • Size
    12
  • Type code
    DHEB
  • Min. diameter to be gripped
    13 mm
  • Mounting position
    Any
  • Operating pressure
    5 bar ... 8 bar
  • Ambient temperature
    5 °C ... 60 °C
  • Guide value for payload
    0.12 kg
  • Guide
    Basic guide
  • Resetting pressure
    < 1 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Pneumatic connection
    M3
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    18 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320822 Specs

1320822 1320822 DataSheet.pdf
