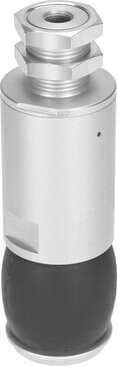

1320815 Festo Grippers

Product Details

• Type code
  DHEB
• Mode of operation
  Single-acting Closed
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Size
  27
• Max. diameter to be gripped
  37 mm
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Note on materials
  Contains paint-wetting impairment substances RoHS-compliant
• Min. diameter to be gripped
  28 mm
• Operating pressure
  4 bar ... 8 bar
• Resetting pressure
  < 1 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Housing material
  Aluminum Anodized
• Stroke of bellows
  12 mm
• Mounting position
  Any
• Min. opening time at 6 bar
  30 ms
• Min. closing time at 6 bar
  60 ms
• Guide value for payload
  0.45 kg
• Bellows material
  EPDM
Guide
Basic guide
Design
Contracting diaphragm Positively driven motion sequence
Ambient temperature
5 °C ... 60 °C
Type of mounting
Optionally: With lock nut
Product weight
100 g
Average replacement interval for the bellows
0.5 MioCyc
Pneumatic connection
M5
