1320803 Festo Grippers

Name: 1320803
Brand: Festo

Part#:1320803

Alt. Part#:DHEB-22-E-U-S-L

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

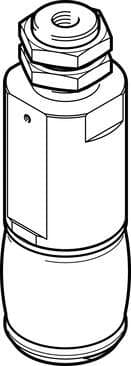

bellows gripper DHEB-22-E-U-S-L Size: 22, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 24 mm, Max. diameter to be gripped: 31,5 mm, Assembly position: Any

Product Details

Position sensing
None
Max. diameter to be gripped
31.5 mm
Size
22
Type code
DHEB
Design
Contracting diaphragm Positively driven motion sequence
Min. opening time at 6 bar
30 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Average replacement interval for the bellows
1 MioCyc
Pneumatic connection
M5
Resetting pressure
< 1 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Product weight
50 g
Bellows material
VMQ (silicone)
Min. diameter to be gripped
24 mm
Guide
Basic guide
Min. closing time at 6 bar
60 ms
Ambient temperature
5 °C ... 60 °C
Housing material
Aluminum Anodized
Stroke of bellows
12 mm
Mounting position
Any

Mode of operation

Single-acting Closed

Operating pressure

5 bar ... 8 bar

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Guide value for payload

0.32 kg

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Max. operating frequency of pneumatic gripper

≤ 4 Hz

For use in the food industry

See supplementary material information

Type of mounting

Optionally: With lock nut

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
