1320826 Festo Grippers

Name: 1320826
Brand: Festo

Part#:1320826

Alt. Part#:DHEB-27-E-U-S-P

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

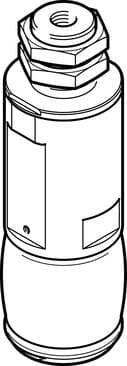

bellows gripper DHEB-27-E-U-S-P Size: 27, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 28 mm, Max. diameter to be gripped: 37 mm, Assembly position: Any

Product Details

Type code
DHEB
Position sensing
For proximity sensor
Min. closing time at 6 bar
60 ms
For use in the food industry
See supplementary material information
Type of mounting
Optionally: With lock nut
Bellows material
VMQ (silicone)
Size
27
Mounting position
Any
Operating pressure
4 bar ... 8 bar
Resetting pressure
< 1 bar
Ambient temperature
5 °C ... 60 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Housing material
Aluminum Anodized
Stroke of bellows
12 mm
Design
Contracting diaphragm Positively driven motion sequence
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
100 g
Min. diameter to be gripped
28 mm
Guide
Basic guide
Max. operating frequency of pneumatic gripper
≤ 4 Hz

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Average replacement interval for the bellows

1 MioCyc

Guide value for payload

0.45 kg

Max. diameter to be gripped

37 mm

Mode of operation

Single-acting Closed

Min. opening time at 6 bar

30 ms

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Pneumatic connection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
