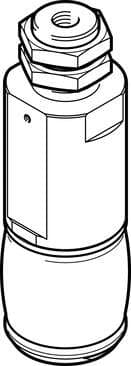

1320806 Festo Grippers

Product Details

• Mounting position
  Any
• Position sensing
  For proximity sensor
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Average replacement interval for the bellows
  1 MioCyc
• Bellows material
  VMQ (silicone)
• Min. diameter to be gripped
  42 mm
• Guide
  Basic guide
• Resetting pressure
  < 1 bar
• Min. opening time at 6 bar
  30 ms
• Guide value for payload
  1.2 kg
• Type of mounting
  Optionally: With lock nut
• Design
  Contracting diaphragm Positively driven motion sequence
• Operating pressure
  4 bar ... 8 bar
• For use in the food industry
  See supplementary material information
• Size
  41
• Max. diameter to be gripped
  54 mm
• Type code
  DHEB
• Min. closing time at 6 bar
  70 ms
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
Product weight
300 g
Pneumatic connection
G1/8
Stroke of bellows
15.5 mm
Mode of operation
Single-acting Closed
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Ambient temperature
5 °C ... 60 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Housing material
Aluminum Anodized
