1320798 Festo Grippers

Name: 1320798
Brand: Festo

Part#:1320798

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-8-E-U-S-L

Product Lifecycle:Active

Get a quick Quote!

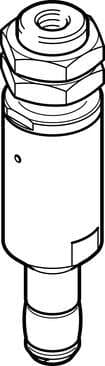

bellows gripper DHEB-8-E-U-S-L Size: 8, Stroke of the bellows: 3,5 mm, Min. diameter to be gripped: 8 mm, Max. diameter to be gripped: 11 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320798 Festo price in the box on the right side or send a quick quote.

Product Details

Size
8
Max. diameter to be gripped
11 mm
Operating pressure
5 bar ... 8 bar
Min. opening time at 6 bar
10 ms
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Guide value for payload
0.08 kg
Bellows material
VMQ (silicone)
Stroke of bellows
3.5 mm
Mounting position
Any
Design
Contracting diaphragm Positively driven motion sequence
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
16 g
Pneumatic connection
M5
Type code
DHEB
Guide
Basic guide
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
For use in the food industry
See supplementary material information
Type of mounting
Optionally: With lock nut
Housing material
Aluminum Anodized

Min. diameter to be gripped

8 mm

Position sensing

None

Resetting pressure

< 1 bar

Ambient temperature

5 °C ... 60 °C

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Mode of operation

Single-acting Closed

Min. closing time at 6 bar

30 ms

Average replacement interval for the bellows

1 MioCyc

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
