1320820 Festo Grippers

1320820 on Powermatic Associates
Festo

Part#:1320820

Manufacturer:Festo

Alt. Part#:DHEB-8-E-U-S-P

Product Lifecycle:Active

Get a quick Quote!

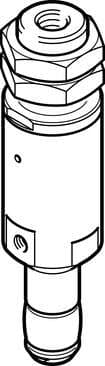

bellows gripper DHEB-8-E-U-S-P Size: 8, Stroke of the bellows: 3,5 mm, Min. diameter to be gripped: 8 mm, Max. diameter to be gripped: 11 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320820 Festo price in the box on the right side or send a quick quote.

Product Details

  • Min. diameter to be gripped
    8 mm
  • Mounting position
    Any
  • Stroke of bellows
    3.5 mm
  • Guide
    Basic guide
  • Min. closing time at 6 bar
    30 ms
  • Type of mounting
    Optionally: With lock nut
  • Size
    8
  • Type code
    DHEB
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Operating pressure
    5 bar ... 8 bar
  • Min. opening time at 6 bar
    10 ms
  • Average replacement interval for the bellows
    1 MioCyc
  • For use in the food industry
    See supplementary material information
  • Product weight
    16 g
  • Max. diameter to be gripped
    11 mm
  • Mode of operation
    Single-acting Closed
  • Resetting pressure
    < 1 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Ambient temperature
    5 °C ... 60 °C
  • Housing material
    Aluminum Anodized
  • Position sensing
    None
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Guide value for payload
    0.08 kg
  • Pneumatic connection
    M3
  • Bellows material
    VMQ (silicone)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
