1320776 Festo Grippers

1320776 on Powermatic Associates
Festo

Part#:1320776

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-8-E-D-S-P

Product Lifecycle:Active

Get a quick Quote!

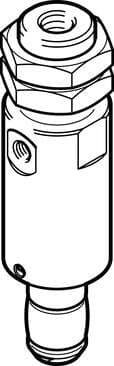

bellows gripper DHEB-8-E-D-S-P Size: 8, Stroke of the bellows: 3,5 mm, Min. diameter to be gripped: 8 mm, Max. diameter to be gripped: 11 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320776 Festo price in the box on the right side or send a quick quote.

Product Details

  • Max. diameter to be gripped
    11 mm
  • Guide
    Basic guide
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Optionally: With lock nut
  • Stroke of bellows
    3.5 mm
  • Type code
    DHEB
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Average replacement interval for the bellows
    1 MioCyc
  • Pneumatic connection
    M3
  • Position sensing
    None
  • Resetting pressure
    < 1 bar
  • Min. closing time at 6 bar
    30 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Product weight
    15 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Min. diameter to be gripped
    8 mm
  • Mounting position
    Any
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Bellows material
    VMQ (silicone)
  • Size
    8
  • Mode of operation
    Single-acting Closed
  • Operating pressure
    5 bar ... 8 bar
  • Min. opening time at 6 bar
    10 ms
  • For use in the food industry
    See supplementary material information
  • Guide value for payload
    0.08 kg
  • Housing material
    Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320776 Specs

1320776 1320776 DataSheet.pdf
