1320802 Festo Grippers

Name: 1320802
Brand: Festo

Part#:1320802

Manufacturer:Festo

Alt. Part#:DHEB-18-E-U-S-L

Product Lifecycle:Active

Get a quick Quote!

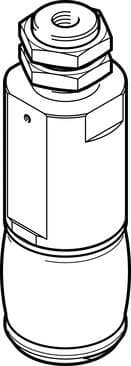

bellows gripper DHEB-18-E-U-S-L Size: 18, Stroke of the bellows: 7,5 mm, Min. diameter to be gripped: 19,5 mm, Max. diameter to be gripped: 25 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320802 Festo price in the box on the right side or send a quick quote.

Product Details

Mode of operation
Single-acting Closed
Operating pressure
5 bar ... 8 bar
Min. closing time at 6 bar
50 ms
For use in the food industry
See supplementary material information
Type of mounting
Optionally: With lock nut
Stroke of bellows
7.5 mm
Mounting position
Any
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Guide value for payload
0.21 kg
Size
18
Max. diameter to be gripped
25 mm
Design
Contracting diaphragm Positively driven motion sequence
Resetting pressure
< 1 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Housing material
Aluminum Anodized
Min. diameter to be gripped
19.5 mm
Guide
Basic guide
Min. opening time at 6 bar
20 ms

Average replacement interval for the bellows

1 MioCyc

Type code

DHEB

Position sensing

None

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Ambient temperature

5 °C ... 60 °C

Pneumatic connection

Bellows material

VMQ (silicone)

Product weight

35 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
