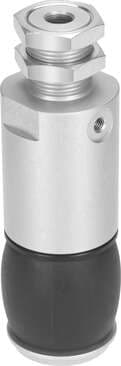

1320789 Festo Grippers

Product Details

• Size
  12
• Type code
  DHEB
• Resetting pressure
  < 1 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Type of mounting
  Optionally: With lock nut
• Max. diameter to be gripped
  17 mm
• Mode of operation
  Single-acting Closed
• Min. opening time at 6 bar
  20 ms
• Average replacement interval for the bellows
  0.5 MioCyc
• Pneumatic connection
  M3
• Stroke of bellows
  5.5 mm
• Mounting position
  Any
• Position sensing
  None
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Product weight
  17 g
• Bellows material
  EPDM
• Design
  Contracting diaphragm Positively driven motion sequence
• Operating pressure
  5 bar ... 8 bar
• Min. closing time at 6 bar
  40 ms
Guide value for payload
0.12 kg
Housing material
Aluminum Anodized
Min. diameter to be gripped
13 mm
Guide
Basic guide
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Ambient temperature
5 °C ... 60 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
