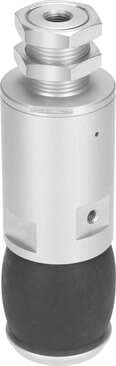

1320840 Festo Grippers

Product Details

• Min. diameter to be gripped
  54 mm
• Mode of operation
  Single-acting Closed
• Size
  51
• Type code
  DHEB
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• Stroke of bellows
  18 mm
• Mounting position
  Any
• Operating pressure
  4 bar ... 8 bar
• Min. opening time at 6 bar
  30 ms
• Ambient temperature
  5 °C ... 60 °C
• Type of mounting
  Optionally: With lock nut
• Design
  Contracting diaphragm Positively driven motion sequence
• Min. closing time at 6 bar
  70 ms
• Product weight
  500 g
• Housing material
  Aluminum Anodized
• Max. diameter to be gripped
  68 mm
• Guide
  Basic guide
• Resetting pressure
  < 1 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Guide value for payload
2.5 kg
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Pneumatic connection
G1/8
Average replacement interval for the bellows
0.5 MioCyc
Bellows material
EPDM
