1320775 Festo Grippers

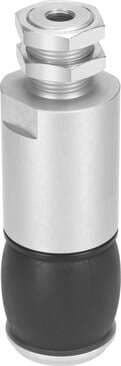

Festo 1320775 bellows gripper DHEB-63-E-D-E-L Size: 63, Stroke of the bellows: 25 mm, Min. diameter to be gripped: 66 mm, Max. diameter to be gripped: 85 mm, Assembly position: Any
Festo

Part#:1320775

Manufacturer:Festo

Alt. Part#:DHEB-63-E-D-E-L

Product Lifecycle:Active

Get a quick Quote!

bellows gripper DHEB-63-E-D-E-L Size: 63, Stroke of the bellows: 25 mm, Min. diameter to be gripped: 66 mm, Max. diameter to be gripped: 85 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320775 Festo price in the box on the right side or send a quick quote.

Product Details

  • Guide
    Basic guide
  • Min. opening time at 6 bar
    40 ms
  • Min. closing time at 6 bar
    100 ms
  • Product weight
    800 g
  • Stroke of bellows
    25 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Resetting pressure
    < 1 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Guide value for payload
    5.1 kg
  • Bellows material
    EPDM
  • Max. diameter to be gripped
    85 mm
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Size
    63
  • Mounting position
    Any
  • Operating pressure
    4 bar ... 8 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Type of mounting
    Optionally: With lock nut
  • Min. diameter to be gripped
    66 mm
  • Mode of operation
    Single-acting Closed
  • Type code
    DHEB
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Ambient temperature
    5 °C ... 60 °C
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Pneumatic connection
    G1/8
  • Housing material
    Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320775 Specs

1320775 1320775 DataSheet.pdf
