1320811 Festo Grippers

Name: 1320811
Brand: Festo

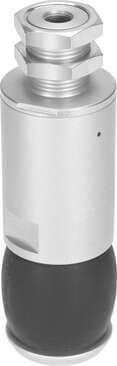

Festo 1320811 bellows gripper DHEB-12-E-U-E-L Size: 12, Stroke of the bellows: 5,5 mm, Min. diameter to be gripped: 13 mm, Max. diameter to be gripped: 17 mm, Assembly position: Any

Part#:1320811

Manufacturer:Festo

Alt. Part#:DHEB-12-E-U-E-L

Product Lifecycle:Active

Get a quick Quote!

bellows gripper DHEB-12-E-U-E-L Size: 12, Stroke of the bellows: 5,5 mm, Min. diameter to be gripped: 13 mm, Max. diameter to be gripped: 17 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320811 Festo price in the box on the right side or send a quick quote.

Product Details

Size
12
Type code
DHEB
Min. diameter to be gripped
13 mm
Mode of operation
Single-acting Closed
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
5 °C ... 60 °C
Pneumatic connection
M5
Max. diameter to be gripped
17 mm
Mounting position
Any
Min. opening time at 6 bar
20 ms
Average replacement interval for the bellows
0.5 MioCyc
Type of mounting
Optionally: With lock nut
Guide
Basic guide
Design
Contracting diaphragm Positively driven motion sequence
Resetting pressure
< 1 bar
Min. closing time at 6 bar
40 ms
Guide value for payload
0.12 kg
Bellows material
EPDM
Stroke of bellows
5.5 mm
Position sensing
None

Max. operating frequency of pneumatic gripper

≤ 4 Hz

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Product weight

18 g

Note on materials

Contains paint-wetting impairment substances RoHS-compliant

Operating pressure

5 bar ... 8 bar

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Housing material

Aluminum Anodized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
