Festo

Part#:1320781

Alt. Part#:DHEB-22-E-D-S-P

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

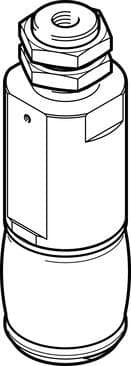

bellows gripper DHEB-22-E-D-S-P Size: 22, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 24 mm, Max. diameter to be gripped: 31,5 mm, Assembly position: Any

Product Details

  • Max. diameter to be gripped
    31.5 mm
  • Size
    22
  • Type code
    DHEB
  • Operating pressure
    5 bar ... 8 bar
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Guide
    Basic guide
  • Min. closing time at 6 bar
    60 ms
  • For use in the food industry
    See supplementary material information
  • Type of mounting
    Optionally: With lock nut
  • Bellows material
    VMQ (silicone)
  • Stroke of bellows
    12 mm
  • Position sensing
    None
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    5 °C ... 60 °C
  • Product weight
    43 g
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Min. diameter to be gripped
    24 mm
  • Mounting position
    Any
  • Mode of operation
    Single-acting Closed
  • Min. opening time at 6 bar
    30 ms
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Average replacement interval for the bellows
    1 MioCyc
  • Housing material
    Aluminum Anodized
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Resetting pressure
    < 1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Guide value for payload
    0.32 kg
  • Pneumatic connection
    M5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
