1320772 Festo Grippers

Name: 1320772
Brand: Festo

Part#:1320772

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-33-E-D-E-L

Product Lifecycle:Active

Get a quick Quote!

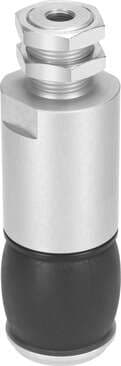

bellows gripper DHEB-33-E-D-E-L Size: 33, Stroke of the bellows: 14,5 mm, Min. diameter to be gripped: 34 mm, Max. diameter to be gripped: 45 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320772 Festo price in the box on the right side or send a quick quote.

Product Details

Size
33
Mode of operation
Single-acting Closed
Min. opening time at 6 bar
30 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Bellows material
EPDM
Operating pressure
4 bar ... 8 bar
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Guide value for payload
0.7 kg
Stroke of bellows
14.5 mm
Mounting position
Any
Resetting pressure
< 1 bar
Min. closing time at 6 bar
60 ms
Product weight
118 g
Min. diameter to be gripped
34 mm
Type code
DHEB
Position sensing
For proximity sensor
Design
Contracting diaphragm Positively driven motion sequence
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]

Average replacement interval for the bellows

0.5 MioCyc

Housing material

Aluminum Anodized

Max. diameter to be gripped

45 mm

Guide

Basic guide

Ambient temperature

5 °C ... 60 °C

Type of mounting

Optionally: With lock nut

Pneumatic connection

G1/8

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
