1320817 Festo Grippers

1320817 on Powermatic Associates
Festo

Part#:1320817

Manufacturer:Festo

Alt. Part#:DHEB-41-E-U-E-L

Product Lifecycle:Active

Get a quick Quote!

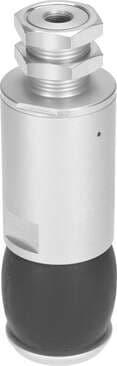

bellows gripper DHEB-41-E-U-E-L Size: 41, Stroke of the bellows: 15,5 mm, Min. diameter to be gripped: 42 mm, Max. diameter to be gripped: 54 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320817 Festo price in the box on the right side or send a quick quote.

Product Details

  • Stroke of bellows
    15.5 mm
  • Mounting position
    Any
  • Type code
    DHEB
  • Position sensing
    For proximity sensor
  • Min. diameter to be gripped
    42 mm
  • Max. diameter to be gripped
    54 mm
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Size
    41
  • Mode of operation
    Single-acting Closed
  • Resetting pressure
    < 1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Guide
    Basic guide
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Average replacement interval for the bellows
    0.5 MioCyc
  • Bellows material
    EPDM
  • Operating pressure
    4 bar ... 8 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Guide value for payload
    1.2 kg
  • Type of mounting
    Optionally: With lock nut
  • Housing material
    Aluminum Anodized
  • Min. opening time at 6 bar
    30 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Min. closing time at 6 bar
    70 ms
  • Product weight
    300 g
  • Pneumatic connection
    G1/8
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
