1320801 Festo Grippers

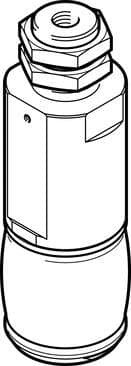

Festo 1320801 bellows gripper DHEB-14-E-U-S-L Size: 14, Stroke of the bellows: 7 mm, Min. diameter to be gripped: 15 mm, Max. diameter to be gripped: 19,5 mm, Assembly position: Any
Festo

Part#:1320801

Manufacturer:Festo

Alt. Part#:DHEB-14-E-U-S-L

Product Lifecycle:Active

Get a quick Quote!

bellows gripper DHEB-14-E-U-S-L Size: 14, Stroke of the bellows: 7 mm, Min. diameter to be gripped: 15 mm, Max. diameter to be gripped: 19,5 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320801 Festo price in the box on the right side or send a quick quote.

Product Details

  • Max. diameter to be gripped
    19.5 mm
  • Position sensing
    None
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    20 g
  • Mode of operation
    Single-acting Closed
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Guide value for payload
    0.15 kg
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Stroke of bellows
    7 mm
  • Min. diameter to be gripped
    15 mm
  • Resetting pressure
    < 1 bar
  • Min. closing time at 6 bar
    40 ms
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • For use in the food industry
    See supplementary material information
  • Housing material
    Aluminum Anodized
  • Size
    14
  • Type code
    DHEB
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Min. opening time at 6 bar
    20 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Type of mounting
    Optionally: With lock nut
  • Mounting position
    Any
  • Guide
    Basic guide
  • Operating pressure
    5 bar ... 8 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Average replacement interval for the bellows
    1 MioCyc
  • Pneumatic connection
    M5
  • Bellows material
    VMQ (silicone)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
