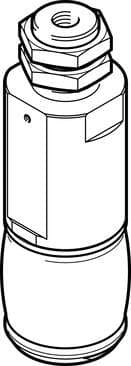

1320779 Festo Grippers

Product Details

• Type code
  DHEB
• Operating pressure
  5 bar ... 8 bar
• Min. closing time at 6 bar
  40 ms
• Average replacement interval for the bellows
  1 MioCyc
• Type of mounting
  Optionally: With lock nut
• Min. diameter to be gripped
  15 mm
• Design
  Contracting diaphragm Positively driven motion sequence
• Guide
  Basic guide
• Max. diameter to be gripped
  19.5 mm
• Position sensing
  None
• Min. opening time at 6 bar
  20 ms
• Ambient temperature
  5 °C ... 60 °C
• Product weight
  17 g
• Housing material
  Aluminum Anodized
• Size
  14
• Mounting position
  Any
• Resetting pressure
  < 1 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Guide value for payload
  0.15 kg
• Pneumatic connection
  M3
Stroke of bellows
7 mm
Mode of operation
Single-acting Closed
Max. operating frequency of pneumatic gripper
≤ 4 Hz
For use in the food industry
See supplementary material information
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Bellows material
VMQ (silicone)
