1320759 Festo Grippers

1320759 on Powermatic Associates
Festo

Part#:1320759

Manufacturer:Festo

Category:Grippers

Alt. Part#:DHEB-22-E-D-S-L

Product Lifecycle:Active

Get a quick Quote!

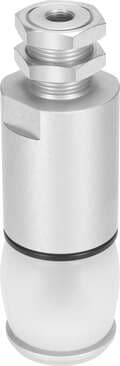

bellows gripper DHEB-22-E-D-S-L Size: 22, Stroke of the bellows: 12 mm, Min. diameter to be gripped: 24 mm, Max. diameter to be gripped: 31,5 mm, Assembly position: Any

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1320759 Festo price in the box on the right side or send a quick quote.

Product Details

  • Position sensing
    None
  • Min. closing time at 6 bar
    60 ms
  • Max. diameter to be gripped
    31.5 mm
  • Mounting position
    Any
  • Operating pressure
    5 bar ... 8 bar
  • For use in the food industry
    See supplementary material information
  • Guide value for payload
    0.32 kg
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Min. diameter to be gripped
    24 mm
  • Type code
    DHEB
  • Guide
    Basic guide
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    43 g
  • Bellows material
    VMQ (silicone)
  • Stroke of bellows
    12 mm
  • Mode of operation
    Single-acting Closed
  • Min. opening time at 6 bar
    30 ms
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Housing material
    Aluminum Anodized
  • Size
    22
  • Design
    Contracting diaphragm Positively driven motion sequence
  • Resetting pressure
    < 1 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Average replacement interval for the bellows
    1 MioCyc
  • Type of mounting
    Optionally: With lock nut
  • Ambient temperature
    5 °C ... 60 °C
  • Pneumatic connection
    M5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 1320759 Specs

1320759 1320759 DataSheet.pdf
