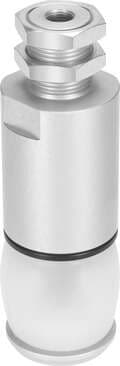

1320756 Festo Grippers

Product Details

• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• For use in the food industry
  See supplementary material information
• Min. diameter to be gripped
  13 mm
• Guide
  Basic guide
• Min. opening time at 6 bar
  20 ms
• Average replacement interval for the bellows
  1 MioCyc
• Stroke of bellows
  5.5 mm
• Max. diameter to be gripped
  17 mm
• Design
  Contracting diaphragm Positively driven motion sequence
• Mode of operation
  Single-acting Closed
• Min. closing time at 6 bar
  40 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Guide value for payload
  0.12 kg
• Bellows material
  VMQ (silicone)
• Size
  12
• Type code
  DHEB
• Position sensing
  None
• Resetting pressure
  < 1 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Ambient temperature
  5 °C ... 60 °C
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Mounting position
Any
Operating pressure
5 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection
M5
Housing material
Aluminum Anodized
Product weight
17 g
Type of mounting
Optionally: With lock nut
