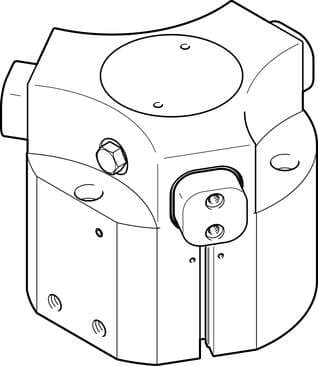

1163050 Festo Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Gripper function
  3-point
• Position sensing
  For proximity sensor
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Min. closing time at 6 bar
  246 ms
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, Mz static
  75 Nm
• Max. mass per external gripper finger
  790 g
• Sealing air pneumatic connection
  G1/8
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Mode of operation
  Double-acting
• Symbol
  00995947
• Min. opening time at 6 bar
  72 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum force on gripper jaw Fz, static
  3600 N
• Mass moment of inertia
  109 kgcm²
• Type of mounting
  Optionally: With internal thread and dowel pin
• Cover cap material
  High-alloy stainless steel
Stroke per gripper jaw
12 mm
Max. gripper jaw backlash Sz
≤ 0.05 mm
Type code
HGDD
Number of gripper jaws
3
Gripping force backup
On opening
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Degree of protection
IP65
Maximum torque on gripper jaw, Mx static
100 Nm
Relubrication interval for guidance elements
5 MioCyc
Pneumatic connection
G1/8
Gripper jaw material
Steel Hardened
Size
80
Housing material
Wrought aluminum alloy Smooth anodized
Mounting position
Any
Design
Inclined plane Positively driven motion sequence
Operating pressure
4 bar ... 8 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, My static
65 Nm
Product weight
4788 g
Note on materials
RoHS-compliant
