1163044 Festo Grippers

Name: 1163044
Brand: Festo

Part#:1163044

Alt. Part#:HGDD-50-A-G1

Manufacturer:Festo

Category:Grippers

Product Lifecycle:Active

Product description

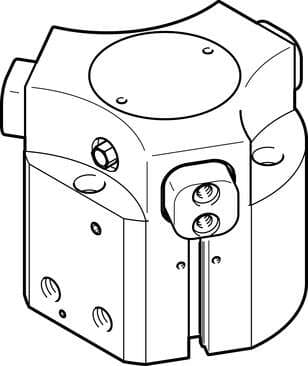

three-point gripper HGDD-50-A-G1 With gripping force backup when opening ...-G1. Size: 50, Stroke per gripper jaw: 8 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gripper jaw backlash ax,ay: <: 0,1 deg, Max. gripper jaw backlash Sz: <: 0,05 mm

Product Details

Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Max. gripper jaw backlash Sz
≤ 0.05 mm
Gripping force backup
On opening
Design
Inclined plane Positively driven motion sequence
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mx static
45 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Product weight
1495 g
Gripper jaw material
Steel Hardened
Stroke per gripper jaw
8 mm
Pneumatic gripper repetition accuracy
≤ 0.03 mm
Gripper function
3-point
Operating pressure
4 bar ... 8 bar
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Maximum torque on gripper jaw, My static
30 Nm
Maximum torque on gripper jaw, Mz static
30 Nm
Note on materials
RoHS-compliant
Housing material
Wrought aluminum alloy Smooth anodized
Size
50
Rotational symmetry
≤ 0.2 mm

Mode of operation

Double-acting

Position sensing

For proximity sensor

Min. opening time at 6 bar

25 ms

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Mass moment of inertia

15.07 kgcm²

Max. mass per external gripper finger

276 g

Pneumatic connection

G1/8

Type code

HGDD

Symbol

00995947

Min. closing time at 6 bar

160 ms

Degree of protection

IP65

Maximum force on gripper jaw Fz, static

1300 N

Sealing air pneumatic connection

Max. interchangeability

≤ 0.2 mm

Number of gripper jaws

Mounting position

Any

Operating pressure for sealing air

0 bar ... 0.5 bar

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Relubrication interval for guidance elements

5 MioCyc

Cover cap material

High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
