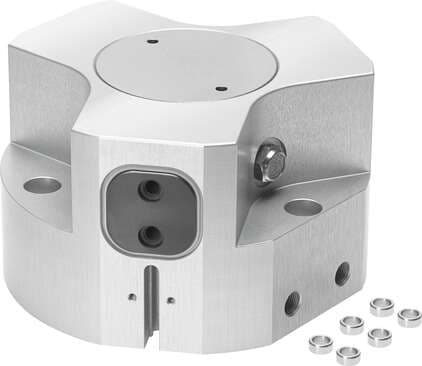

1163049 Festo Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Gripper function
  3-point
• Symbol
  00991894
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Size
  80
• Max. gripper jaw backlash Sz
  ≤ 0.05 mm
• Mounting position
  Any
• Total gripping force at 6 bar, closing
  2745 N
• Min. opening time at 6 bar
  152 ms
• Stroke per gripper jaw
  12 mm
• Rotational symmetry
  ≤ 0.2 mm
• Mode of operation
  Double-acting
• Number of gripper jaws
  3
• Position sensing
  For proximity sensor
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  5 °C ... 60 °C
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Type code
  HGDD
• Design
  Inclined plane Positively driven motion sequence
Total gripping force at 6 bar, opening
2829 N
Max. operating frequency of pneumatic gripper
≤ 4 Hz
Min. closing time at 6 bar
142 ms
Mass moment of inertia
70.22 kgcm²
Maximum torque on gripper jaw, My static
65 Nm
Product weight
3522 g
Cover cap material
High-alloy stainless steel
Operating pressure
3 bar ... 8 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Gripping force per gripper jaw at 6 bar, opening
943 N
Relubrication interval for guidance elements
5 MioCyc
Sealing air pneumatic connection
G1/8
Housing material
Wrought aluminum alloy Smooth anodized
Degree of protection
IP65
Gripping force per gripper jaw at 6 bar, closing
915 N
Maximum torque on gripper jaw, Mx static
100 Nm
Max. mass per external gripper finger
790 g
Pneumatic connection
G1/8
Note on materials
RoHS-compliant
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum force on gripper jaw Fz, static
3600 N
Maximum torque on gripper jaw, Mz static
75 Nm
Type of mounting
Optionally: With internal thread and dowel pin
Gripper jaw material
Steel Hardened
