Part#:1163039

Manufacturer:Festo

Category:Grippers

Alt. Part#:HGDD-35-A-G2

Product Lifecycle:Active

Get a quick Quote!

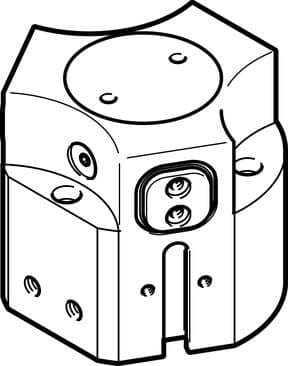

three-point gripper HGDD-35-A-G2 With gripping force backup when closing...-G2. Size: 35, Stroke per gripper jaw: 4 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gripper jaw backlash ax,ay: <: 0,1 deg, Max. gripper jaw backlash Sz: <: 0,05 mm

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1163039 Festo price in the box on the right side or send a quick quote.

Product Details

  • Size
    35
  • Rotational symmetry
    ≤ 0.2 mm
  • Mode of operation
    Double-acting
  • Symbol
    00991895
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Maximum force on gripper jaw Fz, static
    300 N
  • Type of mounting
    Optionally: With internal thread and dowel pin
  • Gripper jaw material
    Steel Hardened
  • Max. gripper jaw angular play ax, ay
    ≤ 0.1 deg
  • Number of gripper jaws
    3
  • Gripper function
    3-point
  • Operating pressure for sealing air
    0 bar ... 0.5 bar
  • Min. closing time at 6 bar
    42 ms
  • Ambient temperature
    5 °C ... 60 °C
  • Maximum torque on gripper jaw, Mz static
    8 Nm
  • Product weight
    370 g
  • Housing material
    Wrought aluminum alloy Smooth anodized
  • Max. interchangeability
    ≤ 0.2 mm
  • Type code
    HGDD
  • Gripping force backup
    During closing
  • Position sensing
    For proximity sensor
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Mass moment of inertia
    1.37 kgcm²
  • Maximum torque on gripper jaw, Mx static
    12 Nm
  • Pneumatic connection
    M5
  • Max. gripper jaw backlash Sz
    ≤ 0.05 mm
  • Design
    Inclined plane Positively driven motion sequence
  • Operating pressure
    4 bar ... 8 bar
  • Max. operating frequency of pneumatic gripper
    ≤ 4 Hz
  • Relubrication interval for guidance elements
    5 MioCyc
  • Sealing air pneumatic connection
    M3
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Stroke per gripper jaw
    4 mm
  • Pneumatic gripper repetition accuracy
    ≤ 0.03 mm
  • Mounting position
    Any
  • Min. opening time at 6 bar
    81 ms
  • Degree of protection
    IP65
  • Maximum torque on gripper jaw, My static
    8 Nm
  • Max. mass per external gripper finger
    57 g
  • Cover cap material
    High-alloy stainless steel

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
