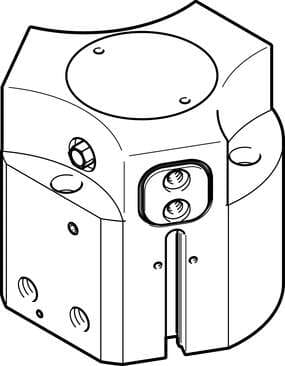

1163045 Festo Grippers

Product Details

• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Number of gripper jaws
  3
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Maximum force on gripper jaw Fz, static
  1300 N
• Relubrication interval for guidance elements
  5 MioCyc
• Max. interchangeability
  ≤ 0.2 mm
• Rotational symmetry
  ≤ 0.2 mm
• Mounting position
  Any
• Design
  Inclined plane Positively driven motion sequence
• Max. operating frequency of pneumatic gripper
  ≤ 4 Hz
• Degree of protection
  IP65
• Maximum torque on gripper jaw, Mx static
  45 Nm
• Type of mounting
  Optionally: With internal thread and dowel pin
• Gripper jaw material
  Steel Hardened
• Stroke per gripper jaw
  8 mm
• Pneumatic gripper repetition accuracy
  ≤ 0.03 mm
• Gripping force backup
  During closing
• Operating pressure
  4 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Max. mass per external gripper finger
276 g
Cover cap material
High-alloy stainless steel
Pneumatic connection
G1/8
Size
50
Max. gripper jaw backlash Sz
≤ 0.05 mm
Mode of operation
Double-acting
Position sensing
For proximity sensor
Min. opening time at 6 bar
111 ms
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, My static
30 Nm
Sealing air pneumatic connection
M5
Note on materials
RoHS-compliant
Type code
HGDD
Gripper function
3-point
Symbol
00991895
Min. closing time at 6 bar
87 ms
Mass moment of inertia
15.07 kgcm²
Maximum torque on gripper jaw, Mz static
30 Nm
Product weight
1495 g
Housing material
Wrought aluminum alloy Smooth anodized

Related documents 1163045 Specs
