1163038 Festo Grippers

Name: 1163038
Brand: Festo

Part#:1163038

Manufacturer:Festo

Alt. Part#:HGDD-35-A-G1

Product Lifecycle:Active

Get a quick Quote!

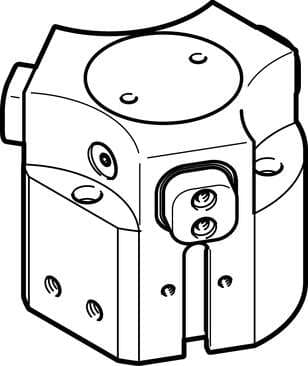

three-point gripper HGDD-35-A-G1 With gripping force backup when opening ...-G1. Size: 35, Stroke per gripper jaw: 4 mm, Max. replacement accuracy: <: 0,2 mm, Max. angular gripper jaw backlash ax,ay: <: 0,1 deg, Max. gripper jaw backlash Sz: <: 0,05 mm

About the manufacturer: Festo is one of the manufacturers that offers Grippers that you can order at Powermatic Associates site. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.

Check out the 1163038 Festo price in the box on the right side or send a quick quote.

Product Details

Gripping force backup
On opening
Symbol
00995947
Min. opening time at 6 bar
38 ms
Degree of protection
IP65
Maximum torque on gripper jaw, Mx static
12 Nm
Relubrication interval for guidance elements
5 MioCyc
Housing material
Wrought aluminum alloy Smooth anodized
Max. gripper jaw backlash Sz
≤ 0.05 mm
Mode of operation
Double-acting
Design
Inclined plane Positively driven motion sequence
Min. closing time at 6 bar
85 ms
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Ambient temperature
5 °C ... 60 °C
Maximum torque on gripper jaw, Mz static
8 Nm
Sealing air pneumatic connection
M3
Pneumatic connection
M5
Cover cap material
High-alloy stainless steel
Max. interchangeability
≤ 0.2 mm
Type code
HGDD
Number of gripper jaws
3

Stroke per gripper jaw

4 mm

Mounting position

Any

Gripper function

3-point

Operating pressure

4 bar ... 8 bar

Max. operating frequency of pneumatic gripper

≤ 4 Hz

Operating medium

Compressed air as per ISO 8573-1:2010 [7:4:4]

Maximum force on gripper jaw Fz, static

300 N

Max. mass per external gripper finger

57 g

Note on materials

Free of copper and PTFE RoHS-compliant

Size

Max. gripper jaw angular play ax, ay

≤ 0.1 deg

Rotational symmetry

≤ 0.2 mm

Pneumatic gripper repetition accuracy

≤ 0.03 mm

Position sensing

For proximity sensor

Operating pressure for sealing air

0 bar ... 0.5 bar

Corrosion resistance class (CRC)

2 - Moderate corrosion stress

Mass moment of inertia

1.37 kgcm²

Maximum torque on gripper jaw, My static

8 Nm

Product weight

370 g

Type of mounting

Optionally: With internal thread and dowel pin

Gripper jaw material

Steel Hardened

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
