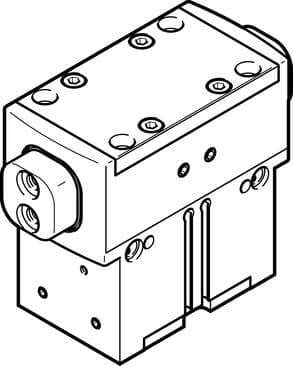

1132946 Festo Grippers

Product Details

• Pneumatic gripper repetition accuracy
  ≤ 0.05 mm
• Mounting position
  Any
• Position sensing
  For proximity sensor
• Min. closing time at 6 bar
  62 ms
• Min. opening time at 6 bar
  31 ms
• Maximum torque on gripper jaw, Mz static
  25 Nm
• Pneumatic connection
  M5
• Gripper jaw material
  Steel Hardened
• Stroke per gripper jaw
  8 mm
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Number of gripper jaws
  2
• Gripping force backup
  On opening
• Design
  Inclined plane Positively driven motion sequence
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum torque on gripper jaw, Mx static
  40 Nm
• Product weight
  682 g
• Sealing air pneumatic connection
  M5
• Max. interchangeability
  ≤ 0.2 mm
• Gripper function
  Parallel
Operating pressure
4 bar ... 8 bar
Ambient temperature
5 °C ... 60 °C
Relubrication interval for guidance elements
5000000 MioCyc
Housing material
Aluminum Anodized
Max. gripper jaw backlash Sz
≤ 0.02 mm
Rotational symmetry
≤ 0.2 mm
Symbol
00995947
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Mass moment of inertia
4.88 kgcm²
Type of mounting
Optionally: With internal thread and dowel pin
Cover cap material
High-alloy stainless steel
Size
35
Type code
HGPD
Mode of operation
Double-acting
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Degree of protection
IP65
Maximum torque on gripper jaw, My static
30 Nm
Max. mass per external gripper finger
278 g
Note on materials
RoHS-compliant
