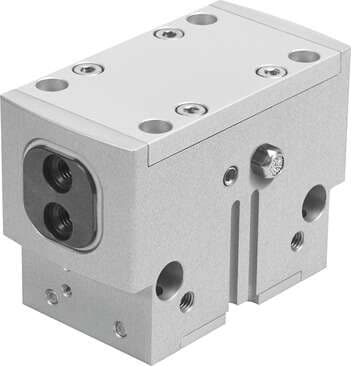

1132945 Festo Grippers

Product Details

• Max. interchangeability
  ≤ 0.2 mm
• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Symbol
  00991894
• Min. closing time at 6 bar
  37 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Maximum torque on gripper jaw, My static
  30 Nm
• Maximum torque on gripper jaw, Mz static
  25 Nm
• Note on materials
  RoHS-compliant
• Stroke per gripper jaw
  8 mm
• Rotational symmetry
  ≤ 0.2 mm
• Number of gripper jaws
  2
• Design
  Inclined plane Positively driven motion sequence
• Operating pressure for sealing air
  0 bar ... 0.5 bar
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Gripping force per gripper jaw at 6 bar, closing
  267 N
• Maximum torque on gripper jaw, Mx static
  40 Nm
• Max. mass per external gripper finger
  278 g
• Gripper jaw material
  Steel Hardened
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Type code
  HGPD
Mode of operation
Double-acting
Position sensing
For proximity sensor
Operating pressure
3 bar ... 8 bar
Ambient temperature
5 °C ... 60 °C
Gripping force per gripper jaw at 6 bar, opening
291 N
Product weight
572 g
Cover cap material
High-alloy stainless steel
Size
35
Pneumatic gripper repetition accuracy
≤ 0.05 mm
Gripper function
Parallel
Total gripping force at 6 bar, opening
581 N
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Degree of protection
IP65
Mass moment of inertia
3.56 kgcm²
Sealing air pneumatic connection
M5
Type of mounting
Optionally: With internal thread and dowel pin
Mounting position
Any
Total gripping force at 6 bar, closing
534 N
Min. opening time at 6 bar
33 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Maximum force on gripper jaw Fz, static
750 N
Relubrication interval for guidance elements
5000000 MioCyc
Pneumatic connection
M5
Housing material
Aluminum Anodized
