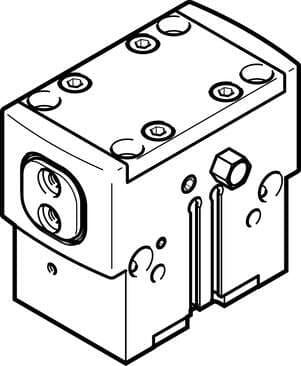

1132944 Festo Grippers

Product Details

• Size
  25
• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Mode of operation
  Double-acting
• Gripping force backup
  During closing
• Design
  Inclined plane Positively driven motion sequence
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Maximum torque on gripper jaw, Mx static
  30 Nm
• Maximum torque on gripper jaw, My static
  25 Nm
• Relubrication interval for guidance elements
  5000000 MioCyc
• Note on materials
  RoHS-compliant
• Stroke per gripper jaw
  6 mm
• Mounting position
  Any
• Min. closing time at 6 bar
  28 ms
• Mass moment of inertia
  1.72 kgcm²
• Type of mounting
  Optionally: With internal thread and dowel pin
• Housing material
  Aluminum Anodized
• Type code
  HGPD
• Gripper function
  Parallel
• Operating pressure
  4 bar ... 8 bar
• Operating pressure for sealing air
  0 bar ... 0.5 bar
Degree of protection
IP65
Maximum torque on gripper jaw, Mz static
15 Nm
Pneumatic connection
M5
Cover cap material
High-alloy stainless steel
Max. interchangeability
≤ 0.2 mm
Rotational symmetry
≤ 0.2 mm
Symbol
00991895
Min. opening time at 6 bar
48 ms
Ambient temperature
5 °C ... 60 °C
Max. mass per external gripper finger
138 g
Sealing air pneumatic connection
M5
Gripper jaw material
Steel Hardened
Max. gripper jaw angular play ax, ay
≤ 0.1 deg
Pneumatic gripper repetition accuracy
≤ 0.04 mm
Number of gripper jaws
2
Position sensing
For proximity sensor
Max. operating frequency of pneumatic gripper
≤ 3 Hz
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
361 g
