WLS70XW600DPWMQ Banner Signal Beacons

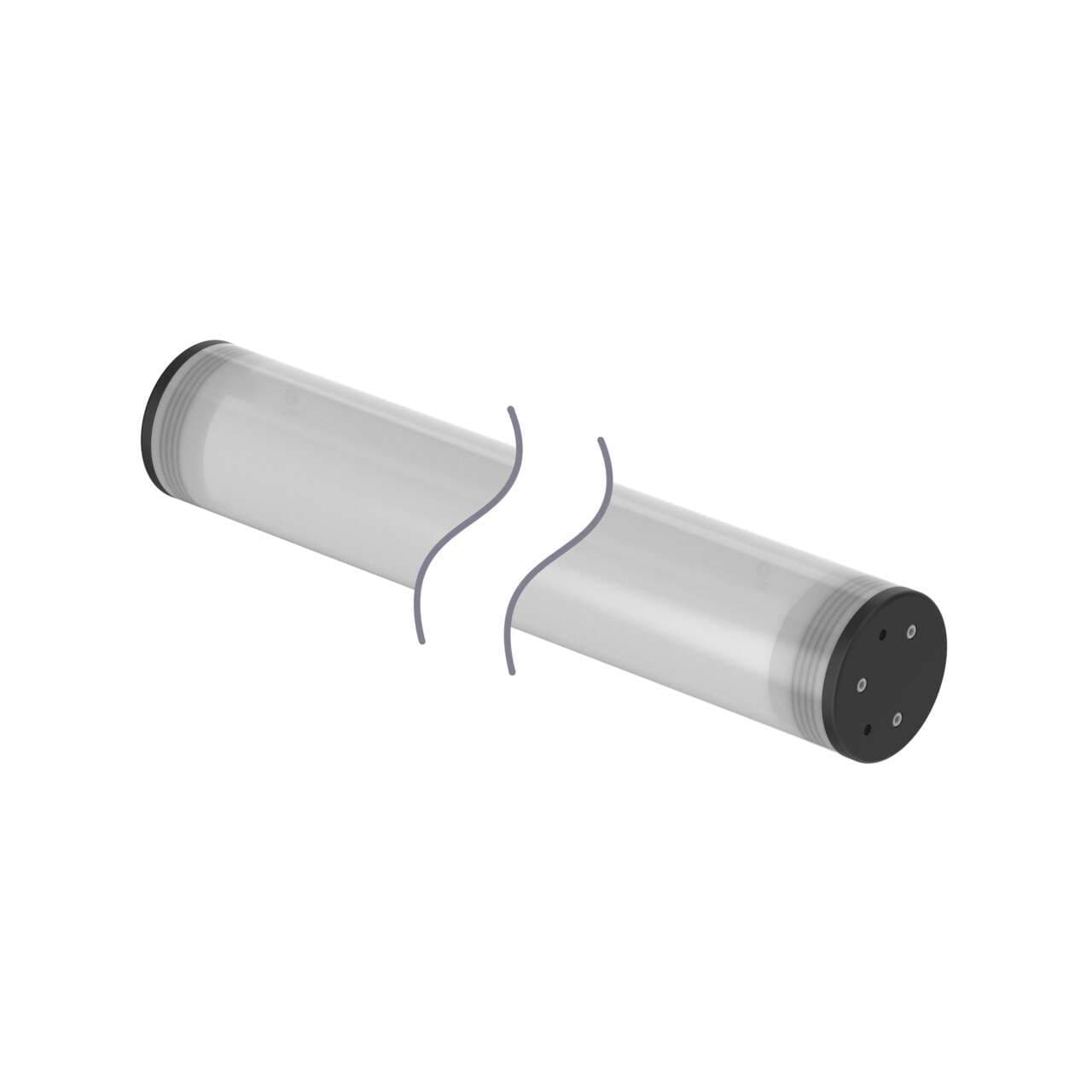

Banner WLS70XW600DPWMQ WLS70 Sealed Work Light; Length: 600 mm; PWM Dimming; Voltage: 12-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 4-pin M12 Integral QD
Banner

Part#:WLS70XW600DPWMQ

Manufacturer:Banner

Alt. Part#:809481

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 600 mm; PWM Dimming; Voltage: 12-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70XW600DPWMQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight
    1610.2516 g
  • Country Of Origin
    MX
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Wireless
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Secondary Material
    Metal
  • Storage Temp (°C)
    -40 to 70
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    68.5 x 667.6
  • Illuminated Length (LxWxH mm)
    600
  • Supply Voltage
    10-30 V dc
  • Number of Input Pins/Conductors
    4
  • Lumens Color 1
    2700
  • Quick Disconnect Type
    M12 (Euro)
  • Max Current Color (mA)
    220
  • Dimming Option
    PWM
  • Color 1 - Wavelength/Color Temp/Coordinates
    5000K (Daylight)
  • Connection
    Integral QD
  • Animation Option 1
    Solid On
  • Color Technology
    Standard LED
  • Color Option 1
    White
  • Product Size (mm)
    70
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Number of Colors / Segments
    1
  • Illumination
    Yes
  • Primary Housing Material
    Polycarbonate
  • Mounting Thread
    No Thread
  • Housing Style
    Linear Strip
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70XW600DPWMQ Description

Banner Engineering WLS70XW600DPWMQ is a task light designed for industrial applications, featuring LED technology in a cylindrical linear strip form. This product offers daylight white (W) LED illumination through a diffused window, with PWM dimmable functionality to adjust brightness levels. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this light are L600mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy installation. The design is rated IP65 for protection against dust and water ingress, making it suitable for a wide range of environments with ambient air temperatures ranging from -40°C to +50°C.

Related documents WLS70XW600DPWMQ Specs

WLS70XW600DPWMQ 216263.pdf
