WLS70ZXW300DAQM Banner Signal Beacons

Name: WLS70ZXW300DAQM
Brand: Banner

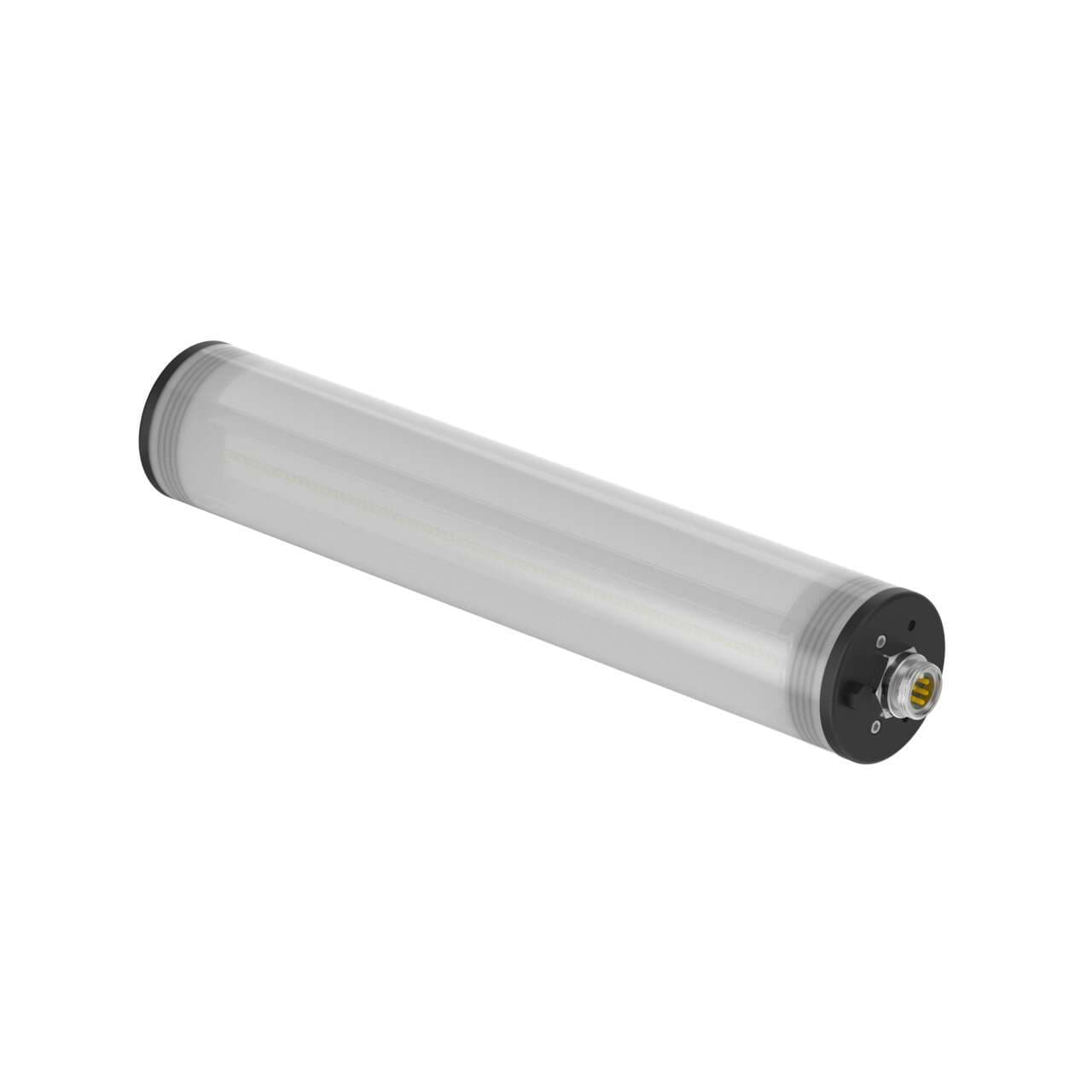

Banner WLS70ZXW300DAQM WLS70 Sealed Work Light; Length: 300 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 5-pin Mini Integral QD

Part#:WLS70ZXW300DAQM

Manufacturer:Banner

Alt. Part#:809468

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 300 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 5-pin Mini Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70ZXW300DAQM Banner price in the box on the right side or send a quick quote.

Product Details

Weight
2063.8436 g
Country Of Origin
MX
Modbus RTU
No
Secondary Material
Metal
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Quick Disconnect
Yes
IO Link
No
Feature: Audible
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP65
Physical Dimensions (LxWxH or DxH mm)
68.5 x 369.8
Illuminated Length (LxWxH mm)
302
Supply Voltage
100-277 V ac
Number of Input Pins/Conductors
5

Max Current Color (mA)

120

Dimming Option

0-10 V dc

Quick Disconnect Type

7/8 in. (Mini)

Lumens Color 1

1350

Connection

Integral QD

Animation Option 1

Solid On

Color Option 1

White

Color Technology

Standard LED

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Power Source

Primary Housing Material

Polycarbonate

Housing Style

Linear Strip

Illumination

Yes

Power

Product Size (mm)

Mounting Thread

No Thread

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70ZXW300DAQM Description

Banner Engineering WLS70ZXW300DAQM is a task light designed for industrial applications, featuring LED technology with a single-color Daylight White (W) illumination. It is equipped with a diffused window and offers 0-10Vdc analog dimming control input for adjustable lighting. This model operates on a supply voltage range of 100Vac-277Vac, accommodating multiple standard voltages such as 120Vac, 220Vac, 230Vac, and 240Vac. The dimensions of this light are L300mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing, ensuring durability. It comes pre-equipped with a 5-pin 7/8"-16UN-2B Mini-style QD connector for easy installation. The cylindrical linear strip shape is designed for versatile mounting options, and it boasts an IP65 degree of protection, making it suitable for use in environments with dust and water exposure. The ambient air temperature range for operation is between -40°C and +50°C, accommodating a wide range of industrial environments.
