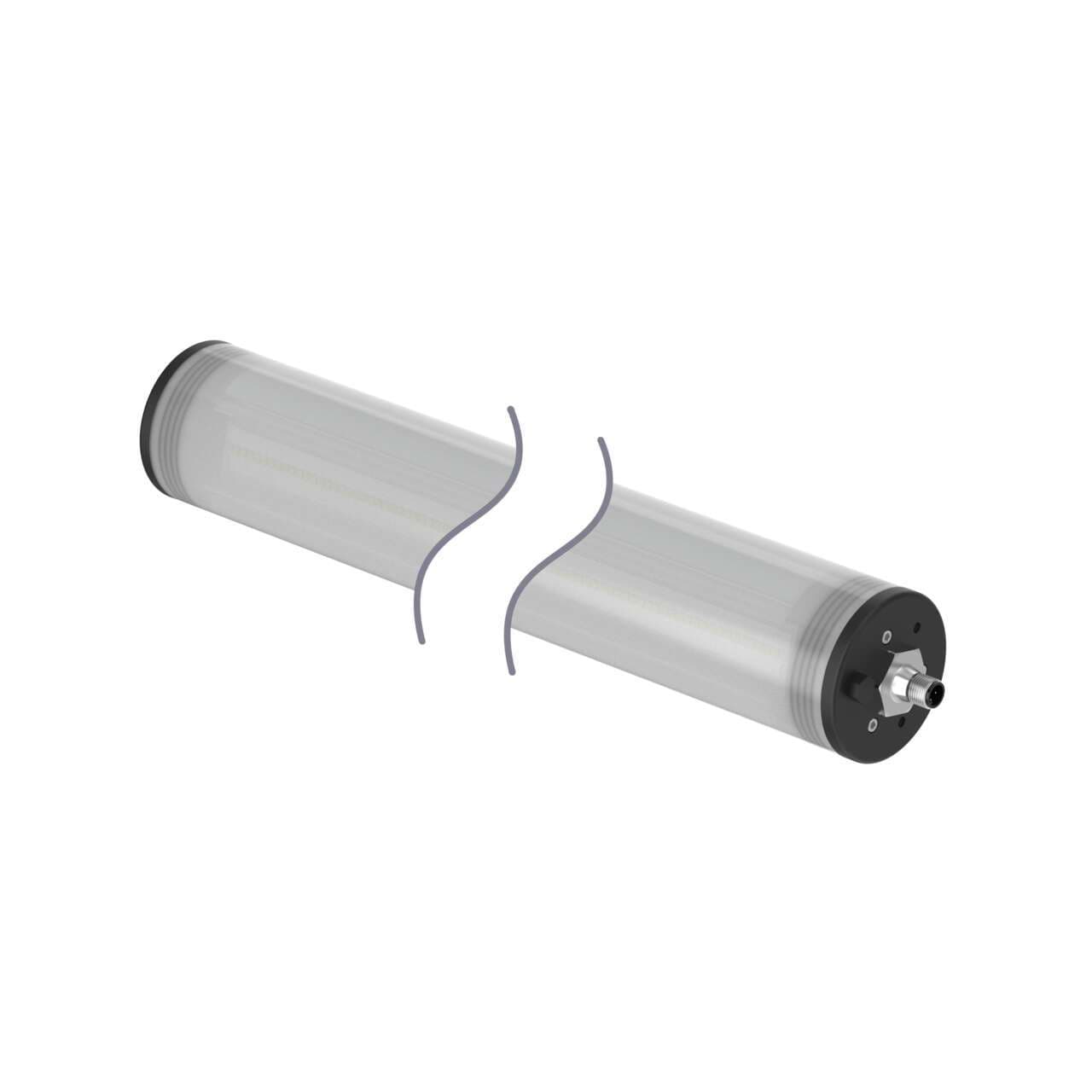

WLS70XW1200DPWMQ Banner Signal Beacons
Part#:WLS70XW1200DPWMQ
Alt. Part#:809483
Manufacturer:Banner
Category:Signal Beacons
Product Lifecycle:Active
Product description
WLS70 Sealed Work Light; Length: 1200 mm; PWM Dimming; Voltage: 18-30 V dc; Environ. Rating: IP65; Color: White; Diffused Window; 4-pin M12 Integral QD
Product Details
- Weight 3107.1052 g
- Country Of Origin MX
- Pro-Editor Compatible (Discrete) No
- Wireless No
- Modbus RTU No
- IO Link No
- Secondary Material Metal
- Feature: Hazardous Area No
- Feature: Audible No
- Feature: Quick Disconnect Yes
- Feature: Chemical Resistant No
- Primary Window Material Polycarbonate Diffused
- Max Op. Temperature (°C) 50
- Storage Temp (°C) -40 to 70
- Environmental Rating IP65
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Dimming Option PWM
- Physical Dimensions (LxWxH or DxH mm) 68.5 x 1263.0
- Illuminated Length (LxWxH mm) 1196
- Max Current Color (mA) 420
- Supply Voltage 10-30 V dc
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 1 5400
- Animation Option 1 Solid On
- Connection Integral QD
- Color Option 1 White
- Color Technology Standard LED
- Product Size (mm) 70
- Number of Colors / Segments 1
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread No Thread
- Illumination Yes
- Primary Housing Material Polycarbonate
- Housing Style Linear Strip
- Power Source DC
- Power DC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of WLS70XW1200DPWMQ on Powermatic Associates is $598.00. Order now.
About the product
Banner Engineering WLS70XW1200DPWMQ is a task light designed for industrial applications, featuring LED technology in a cylindrical linear strip form. This model provides 1-color Daylight White (W) LED illumination through a diffused window, and it is PWM dimmable, allowing for adjustable light intensity. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. The dimensions of this light are L1200mm x D70mm, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The WLS70XW1200DPWMQ is designed to withstand ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP65, making it suitable for a variety of challenging environments.
