WLS70ZXW300DA Banner Signal Beacons

Name: WLS70ZXW300DA
Brand: Banner

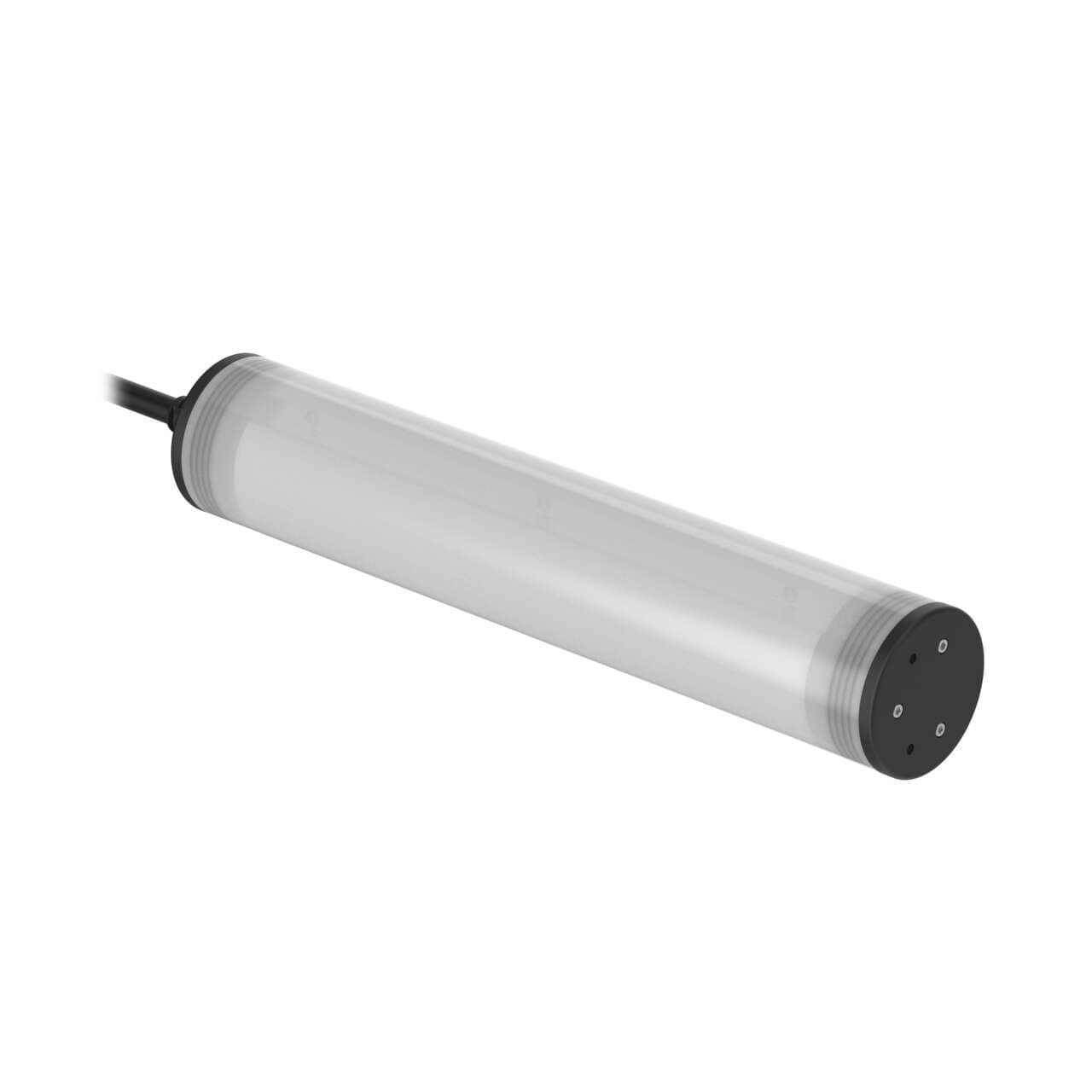

Banner WLS70ZXW300DA WLS70 Sealed Work Light; Length: 300 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable

Part#:WLS70ZXW300DA

Manufacturer:Banner

Alt. Part#:809464

Product Lifecycle:Active

Get a quick Quote!

WLS70 Sealed Work Light; Length: 300 mm; 0-10 V dc Analog Dimming; Voltage: 120-277 V ac; Environ. Rating: IP65; Color: White; Diffused Window; 2 m (6.5 ft) Integral Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at Powermatic Associates site. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the WLS70ZXW300DA Banner price in the box on the right side or send a quick quote.

Product Details

Weight
2358.6784 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
IO Link
No
Modbus RTU
No
Wireless
No
Feature: Quick Disconnect
No
Feature: Chemical Resistant
No
Feature: Hazardous Area
No
Feature: Audible
No
Secondary Material
Metal
Primary Window Material
Polycarbonate Diffused
Storage Temp (°C)
-40 to 70
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP65
Supply Voltage
100-277 V ac
Physical Dimensions (LxWxH or DxH mm)
68.5 x 369.8
Illuminated Length (LxWxH mm)
302
Number of Input Pins/Conductors
5

Max Current Color (mA)

120

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Lumens Color 1

1350

Dimming Option

0-10 V dc

Connection

Cable

Product Size (mm)

Color Technology

Standard LED

Animation Option 1

Solid On

Color Option 1

White

Mounting Thread

No Thread

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Cable Length (m)

Primary Housing Material

Polycarbonate

Number of Colors / Segments

Illumination

Yes

Power

Housing Style

Linear Strip

Power Source

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

WLS70ZXW300DA Description

Banner Engineering WLS70ZXW300DA is a task light designed for industrial applications, featuring LED technology with a single-color Daylight White (W) illumination. It is equipped with a diffused window and offers 0-10Vdc analog dimming control input for adjustable lighting. This model operates on a supply voltage range of 100Vac-277Vac, accommodating multiple standard voltages such as 120Vac, 220Vac, 230Vac, and 240Vac. The light measures 300mm in length and 70mm in diameter, constructed with a polycarbonate (PC) outer housing and a clear anodized aluminum housing for durability. It comes pre-wired with a 2m / 6.5ft 5-wire cable featuring bare end flying leads for easy installation. The cylindrical linear strip shape is designed for versatile mounting options, and it boasts an IP65 degree of protection, making it suitable for use in environments with dust and water exposure. The WLS70ZXW300DA can operate in ambient air temperatures ranging from -40°C to +50°C.
